Description
Introduction

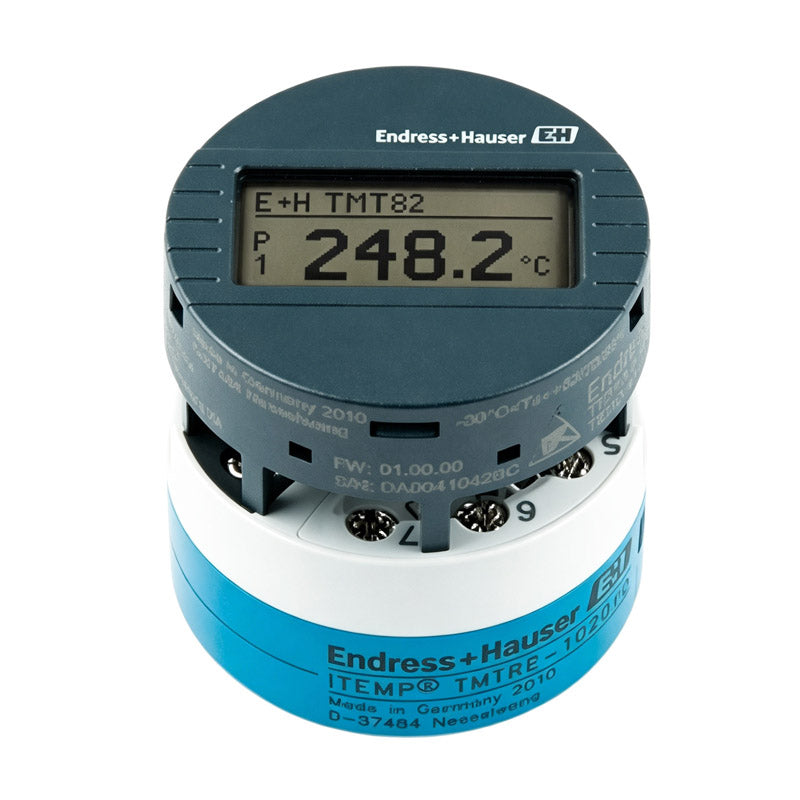

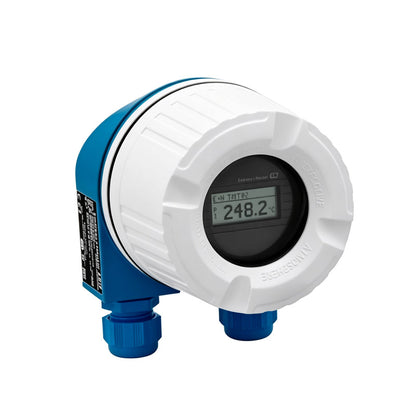

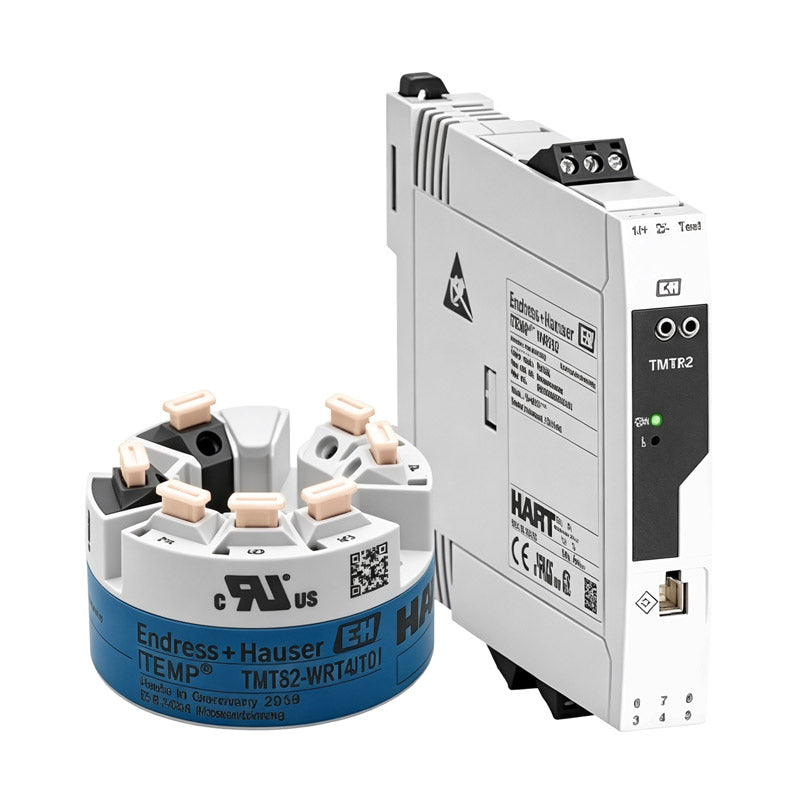

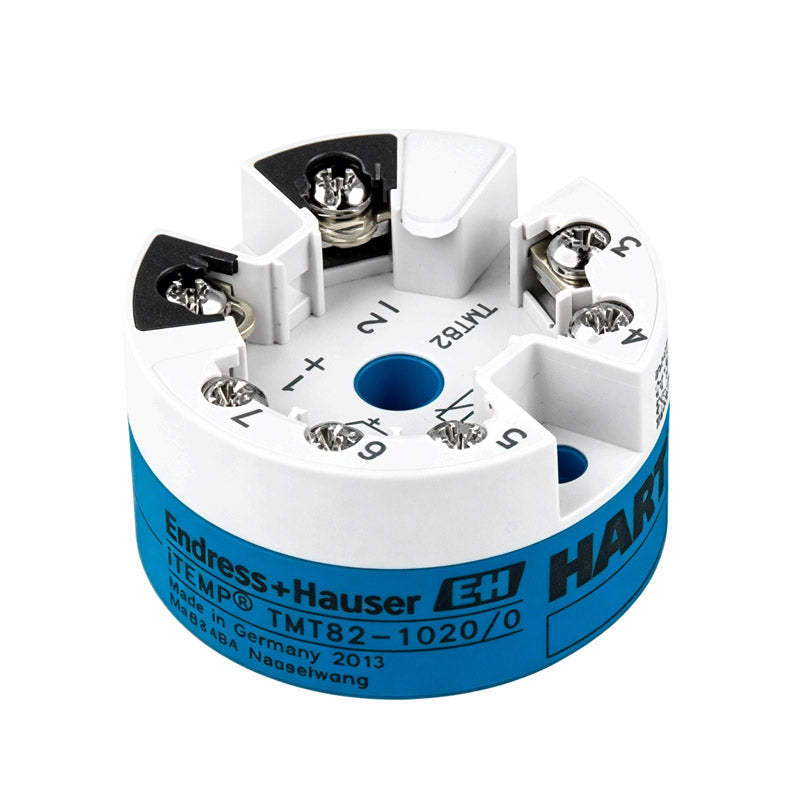

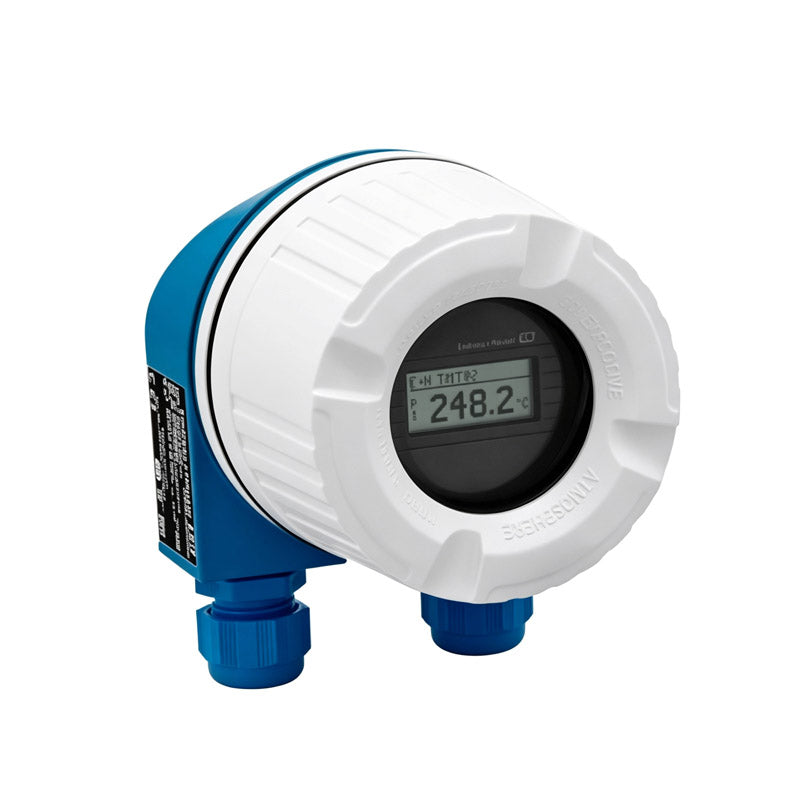

The Endress+Hauser iTEMP TMT82 is a high-performance HART® temperature transmitter designed for demanding industrial processes. Certified up to SIL2/SC3, it delivers stable, accurate measurements for maximum plant availability and safety.
Specification
| Parameter | Specification |
|---|---|
| Measuring principle | Head transmitter |
| Input | 2 x RTD, TC, Ohm, mV |
| Output | 1 x analog 4...20 mA / HART |
| Auxiliary power supply | - 11...42 V DC (head transmitter) - 12...42 V DC (Din rail device) - 11/12...30 V DC (Ex ia) |
| Communication | HART-protocol |
| Installation | Terminal head form B, DIN-Rail housing or field mount housing |
| Accuracy | - (Pt100, -50...200 °C) ≤ 0.1 K - (Pt100, -58...392 °F) ≤ 0.18 °F |
| Galvanic isolation | yes |
| Certification | ATEX Ex ia, Ex ic, Ex tb, Ex tc, Ex nA, Ex d ATEX IECEx Ex ia IECEx Ex ia, Ex tb, Ex d CSA C/US General Purpose CSA IS, NI, XP, DIP FM IS, NI, XP, DIP FM+CSA IS, NI INMETRO Ex ia [ia Ga], Ex d, Ex tb NEPSI Ex ia, Ex d, Ex tb, Ex ec EAC Ex ia, Ex d UKCA Ex ia, Ex tb, Ex tc, Ex nA, Ex db KC Ex IND Ex PESO Ex |
