Introduction

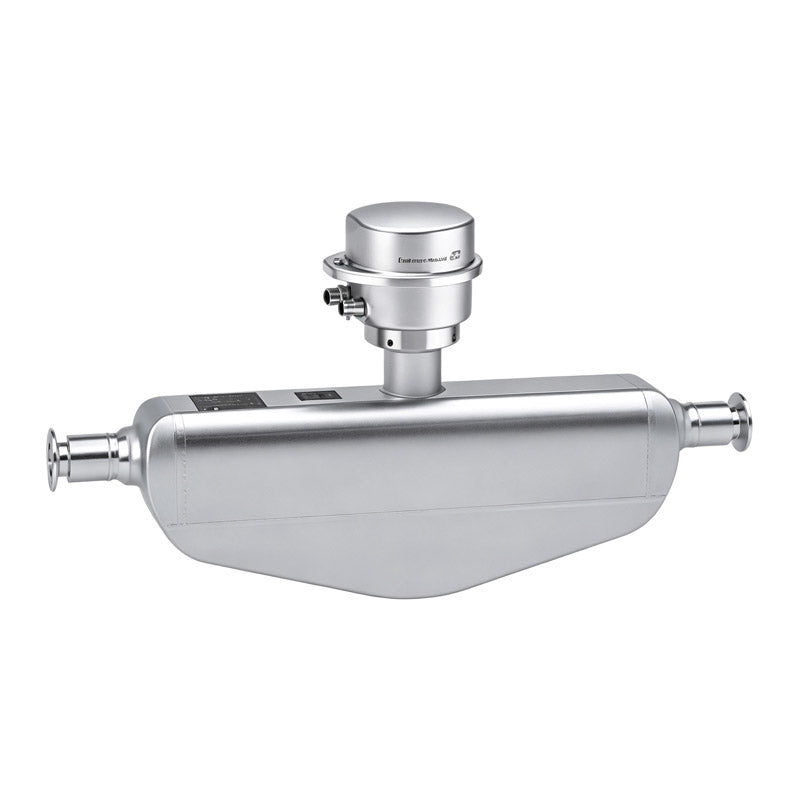

The Proline Promass P 100 is a hygienic Coriolis mass flowmeter purpose-built for sterile applications in the life sciences industry. Combining the performance of a bent-tube meter with the full drainability of a straight-tube design, it delivers reliable, multivariable measurement of mass flow, density, and temperature—independent of fluid properties like viscosity.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Coriolis |
| Mass Flow Measurement Error (Liquid) | ±0.1% |
| Density Measurement Error (Liquid) | ±0.0005 g/cm³ |
| Nominal Diameter Range | DN 8 to 50 (⅜" to 2") |
| Measuring Range | 0 to 70,000 kg/h (0 to 2570 lb/min) |
| Max. Process Pressure | PN 63, Class 300, 40K |
| Medium Temperature Range | -50 to +150 °C (-58 to +302 °F) (option up to +205 °C) |
| Protection Degree | IP66/67 (standard), IP69 (optional) |
| Hygienic Certifications | 3-A, EHEDG, ASME BPE, ISPE, cGMP compliant |
| Digital Communication | HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET |
Key Advantages
Dual-Design Performance & Drainability: Merges the high performance of a bent-tube meter with the full drainability of a straight-tube design, eliminating dead legs and ensuring full process fluid recovery in sterile applications.
Ultra-Compact Footprint for Space-Critical Installations: Features the smallest transmitter housing in its category, enabling full functionality on the tightest equipment footprints with no inlet/outlet straight run requirements.
Class-Leading Hygienic & Sterile Compliance: Certified to 3-A, EHEDG, ASME BPE, and cGMP standards, with an electropolished 316L measuring tube for fast recovery from CIP/SIP cleaning cycles.
Rugged Protection for Harsh Environments: Offers IP69K ingress protection (optional) alongside standard IP66/67, making it fully washdown-ready for high-pressure cleaning in pharmaceutical and biotech production.
Integrated Diagnostics & Smart Operation: Built-in web server allows local configuration without extra software, while Heartbeat Technology provides continuous traceable verification per ISO 9001 standards.
