Introduction

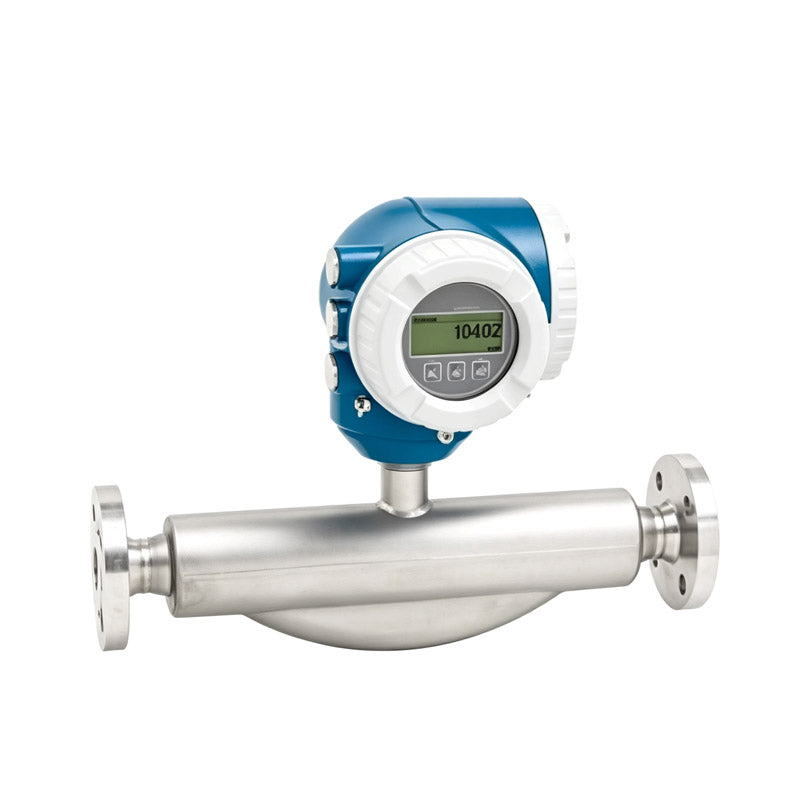

The Proline Promass F 300 is a premium Coriolis mass flowmeter engineered for the most demanding industrial flow applications. Operating independently of fluid properties like viscosity or density, it delivers direct, high-precision measurement of mass flow, density, and temperature for both liquids and gases. Built for reliability in fluctuating and harsh environments, it features a compact, space-saving design with no inlet/outlet run requirements, making it ideal for tight installations. Its flexible, easily accessible transmitter supports seamless system integration, while integrated Heartbeat Technology ensures long-term measurement stability and reduced maintenance needs.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Coriolis |
| Mass Flow Measurement Error (Liquid) | ±0.10% (standard), ±0.05% (PremiumCal option) |
| Mass Flow Measurement Error (Gas) | ±0.25% |
| Density Measurement Error (Liquid) | ±0.0005 g/cm³ |
| Nominal Diameter Range | DN 8 to 250 (⅜" to 10") |
| Medium Temperature Range | -196°C to +350°C (-320°F to +662°F) |
| Measuring Range | 0 to 2,200,000 kg/h (0 to 80,840 lb/min) |
| Max. Process Pressure | PN 100, Class 600, 63K |
| Protection Degree | IP66/67 (IP69 optional) |
| I/O & Communication |
Up to 3 configurable I/Os, 4-20 mA HART/WirelessHART, pulse/frequency/switch output |
Key Advantages
Industry-Leading Accuracy: Achieves ±0.05% mass flow measurement error (PremiumCal), delivering lab-grade precision even in dynamic process conditions.
Multivariable Measurement: Simultaneously measures mass flow, density, temperature, volume flow, and concentration, eliminating the need for multiple separate sensors.
Harsh Environment Resilience: Withstands medium temperatures from -196°C to 350°C and offers IP66/67 (IP69 optional) ingress protection, ensuring reliability in extreme conditions.
Compact, Installation-Friendly Design: No straight inlet/outlet runs required, reducing installation space and engineering complexity for retrofits or new projects.
Smart Diagnostics & Extended Calibration: Integrated Heartbeat Technology enables continuous self-verification, extending recalibration cycles and minimizing unplanned downtime.
