Introduction

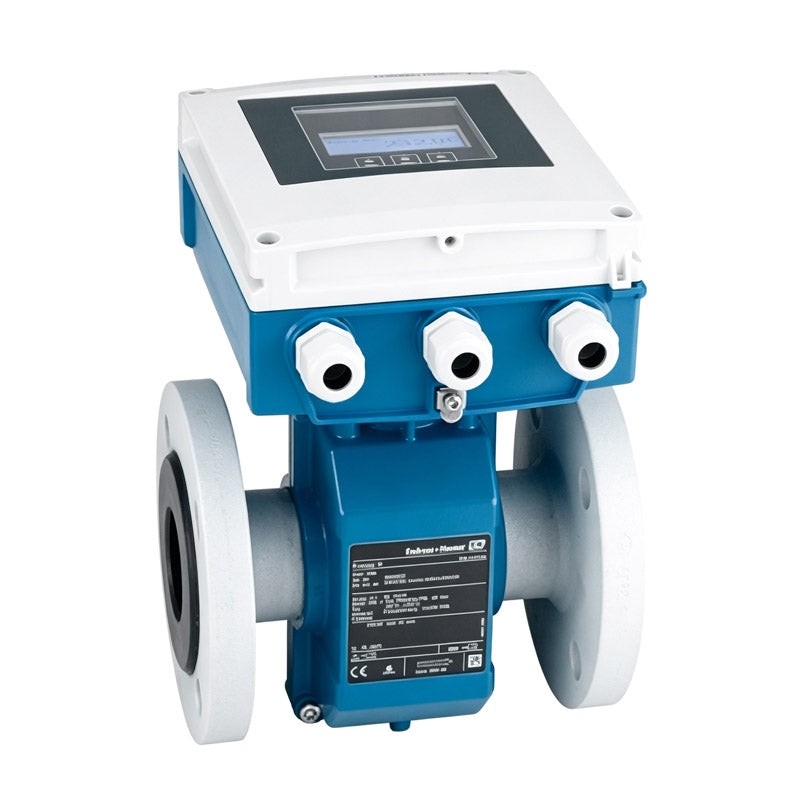

The Proline Promag W 400 is a versatile electromagnetic flowmeter purpose-built for the water and wastewater industry. With bidirectional measurement independent of pressure, density, temperature, and viscosity, it delivers reliable, constant-accuracy flow measurement with 0 x DN inlet run requirements and zero pressure loss. Optimized for water, wastewater, and utility applications, it features international drinking water approvals, IP68 ingress protection, and both compact and remote versions for flexible installation. Integrated Heartbeat Technology ensures continuous verification and measurement reliability, while its durable design and corrosion protection make it ideal for underground, underwater, and custody transfer applications.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Nominal Diameter Range | DN 25 to 3000 (1" to 120") |
| Volume Flow Measurement Error | ±0.5% o.r. ±1 mm/s (standard); ±0.2% o.r. ±2 mm/s (option) |
| Measuring Range | 0.5 m³/h to 263000 m³/h (2.5 gal/min to 1665 Mgal/d) |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Protection Degree | IP66/67 (standard); IP68 (Type 6P, optional) |
| Drinking Water Approvals | ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
| Custody Transfer Approval | MI-001/OIML R49 compliant |
| Digital Communication | HART, PROFIBUS DP, EtherNet/IP, Modbus RS485 |
| Liner Material Options | Hard rubber, polyurethane, PTFE |
Key Advantages
Zero Pressure Loss & No Straight Run Requirements: Delivers accurate flow measurement with 0 x DN inlet run needs, eliminating installation space constraints and pressure drop for cost-effective, easy integration.
Drinking Water & Custody Transfer Certified: Approved for drinking water applications (ACS, KTW-BWGL, NSF 61) and custody transfer per MI-001/OIML R49, meeting regulatory requirements for utility and industrial water metering.
Extreme Durability for Harsh Environments: Features IP68 (Type 6P) ingress protection and EN ISO 12944 corrosion protection, making it fully suitable for underground, underwater, and high-humidity wastewater installations.
Versatile Liner & Electrode Options: Supports multiple liner materials (hard rubber, polyurethane, PTFE) and electrode materials (316L, Alloy C22, Tantalum), adapting to corrosive, abrasive, and varying-temperature water/wastewater media.
Smart Operation & Continuous Diagnostics: Equipped with a touch display, integrated web server, and WLAN access for easy local configuration, while Heartbeat Technology provides continuous verification and buildup detection to extend maintenance cycles.
