Introduction

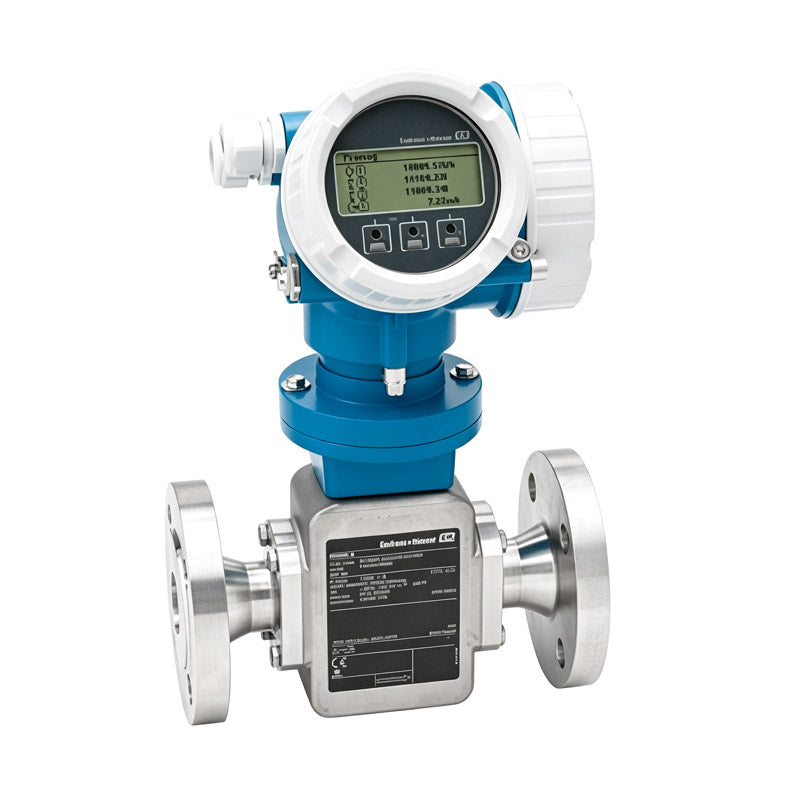

The Proline Promag H 200 is a loop-powered electromagnetic flow meter purpose-built for the smallest flow quantities, ideal for chemical, life sciences and hygienic applications. With PFA lining, stainless steel housing, and Heartbeat Technology, it delivers accurate, maintenance-free flow measurement while ensuring compliance with global safety standards.
Key advantages
1. Loop-Powered Operation: Eliminates need for external power, enabling seamless integration into existing 4-20mA infrastructure with no additional wiring.
2. Ultra-Small Flow Capability: Measures volumes as low as 0.06 dm³/min with ±0.5% accuracy, ideal for micro-flow applications in pharma and chemical industries.
3. Full Hygienic & Corrosion Resistance: Features PFA liner and 316L/C22/tantalum electrodes, supporting temperatures up to 150°C and aggressive process fluids.
4. Maintenance-Free & Robust Design: No moving parts, IP69 ingress protection, and dual-compartment housing ensure long-term reliability with zero routine upkeep.
5. Heartbeat Technology for Safety: Integrated verification provides continuous self-diagnostics and traceability, meeting SIL and ISO 9001 requirements for process safety.
Specification
| Parameter | Specification |
|---|---|
| Measuring principle | Electromagnetic |
| Nominal diameter range | DN 2 to 25 (1⁄1₂ to 1") |
| Wetted materials (liner) | PFA |
| Wetted materials (electrodes) | 1.4435 (316L); Alloy C22; Tantalum; Platinum |
| Max. measurement error | Volume flow: ±0.5 % o.r. ± 2 mm/s |
| Measuring range | 0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Power supply | DC 18 to 35 V (4-20 mA HART) |
| Outputs | 4-20 mA HART (passive); Pulse/frequency/switch output (passive) |
| Digital communication | HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Degree of protection | IP66/67, type 4X enclosure |
| Functional safety | IEC 61508 (SIL) compliant |
| Hazardous area approvals | ATEX, IECEx, cCSAus, NEPSI, EAC, UK Ex, KC |
