Introduction

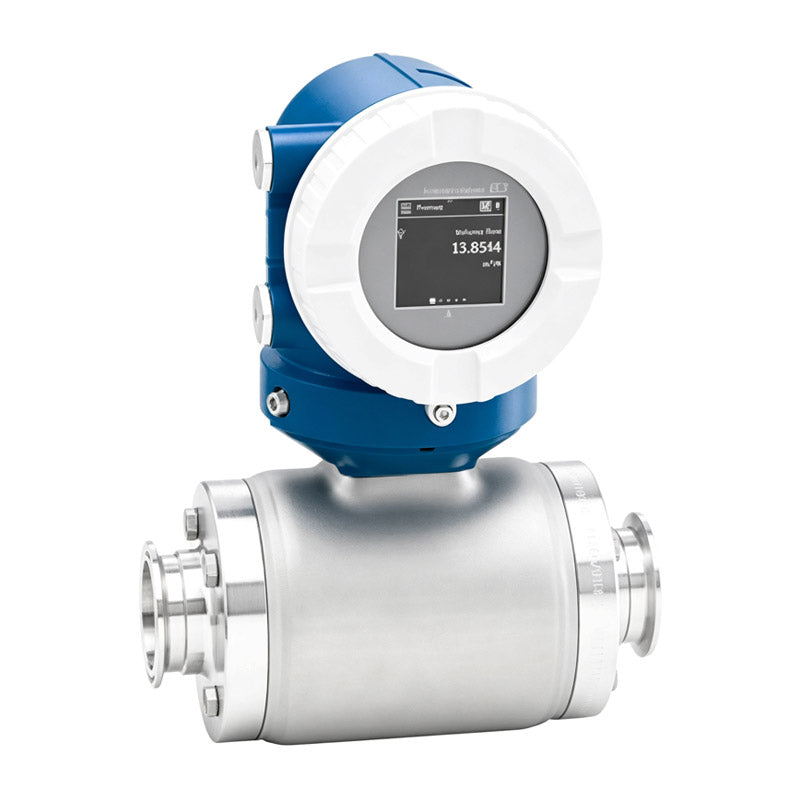

The Proline Promag H 10 is a cost-effective, easy-to-use electromagnetic flow meter for basic hygienic applications in food, beverage and life sciences. With PFA lining, 3-A/EHEDG certifications, and Heartbeat Technology, it delivers accurate flow measurement with flexible commissioning via app or touch display.
Key advantages
1. Cost-Effective Hygienic Solution: Ideal for basic sanitary applications with 3-A/EHEDG certifications, PFA liner and CIP/SIP cleanable wetted parts at an accessible price point.
2. High Accuracy & Wide Range: Offers ±0.2% optional accuracy and a measuring range from 0.06 dm³/min to 600 m³/h, covering diverse food and beverage processes.
3. Flexible Installation: 0×DN inlet run design allows installation in tight spaces, with numerous hygienic process connections for seamless integration.
4. Smart Commissioning: Easy setup via touch display, Bluetooth, or SmartBlue app, with guided parameterization to save time in the field.
5. Reliable & Maintenance-Free: No moving parts, IP66/67 protection, and Heartbeat Technology ensure long-term reliability with extended recalibration cycles.
Specification
| Parameter | Specification |
|---|---|
| Measuring principle | Electromagnetic |
| Nominal diameter range | DN 2 to 150 (1⁄₁₂ to 6") |
| Wetted materials (liner) | PFA |
| Wetted materials (electrodes) | 1.4435 (316L); Alloy C22 |
| Max. measurement error | Volume flow (standard): ±0.5% o.r. ±1 mm/s; (option): ±0.2% o.r. ±2 mm/s |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Degree of protection | IP66/67, Type 4X enclosure |
| Display/Operation | 2.4" LCD touch display; Bluetooth & SmartBlue app operation |
| Outputs | 4-20 mA HART (active/passive); Pulse/frequency/switch output |
| Digital communication | HART, MODBUS RS485, IO-Link |
| Power supply | DC 24 V; AC 100 to 230 V; AC/DC 24 V (non-hazardous) |
| Hygienic approvals | EHEDG, 3-A, FDA, cGMP compliant |
