Introduction

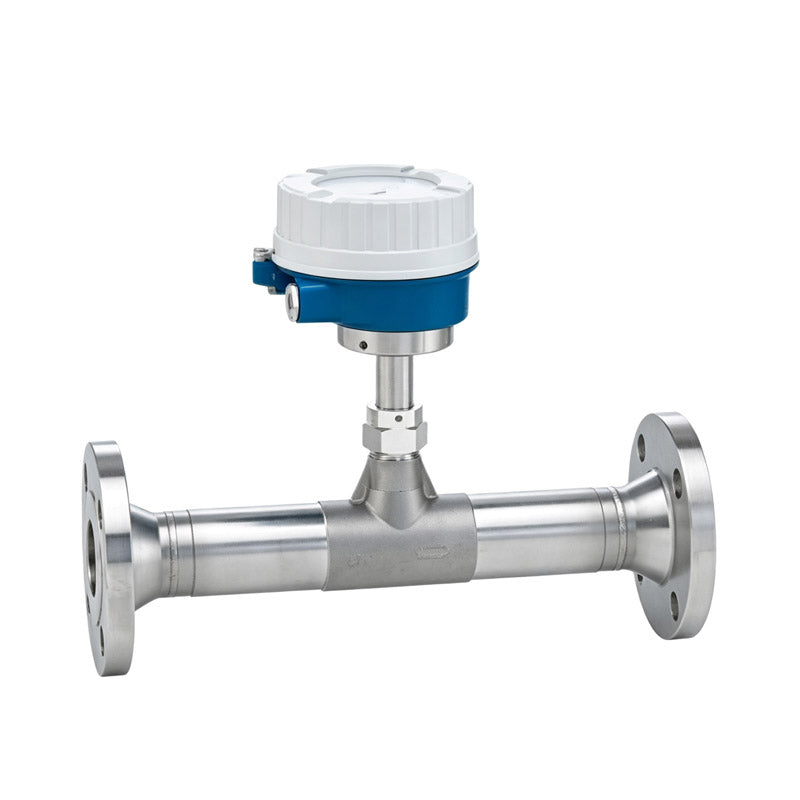

The Endress+Hauser Proline t-mass F 500 is a remote version inline thermal mass flowmeter designed for utility and process gas measurement in small line sizes (DN15 to DN100). Featuring a patented drift-free sensor with SIL 2 rating, it offers long-term stability and bidirectional measurement. Its remote transmitter design with up to 4 I/Os maximizes installation flexibility in demanding environments, while flexible gas programming and Heartbeat Technology ensure reliable, compliant operation.
Key advantages
1. Remote Transmitter Flexibility: With a separate sensor-transmitter design and standard cable connection, it offers unmatched installation flexibility for confined or harsh industrial environments.
2. Enhanced I/O Capability: Supports up to 4 configurable I/Os, providing more connectivity options for complex process integration and data communication needs.
3. Highly Versatile Gas Compatibility: Programmable for 21 standard gases or custom mixtures, adapting to various utility and process gas measurement requirements.
4. Rugged & Safe Operation: Patented drift-free SIL 2 sensor delivers premium accuracy, while IP66/67 protection (IP68 optional) ensures reliable performance in tough conditions.
5 Advanced Diagnostics & Verification: Equipped with Heartbeat Technology, it enables continuous self-monitoring, integrated verification, and compliance with traceability standards.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Thermal |
| Nominal Diameter Range | DN 15 to DN 100 (1/2" to 4") |
| Wetted Materials | Measuring tube: CF3M/1.4408 (DN15-50); 1.4404/316L (DN65-100) |
| Max. Process Pressure | PN40 / Cl. 300 / 20K |
| Medium Temperature Range | -40 °C to +180 °C (-40 °F to +356 °F) |
| Measuring Range | 0.5 to 3750 kg/h (1.1 to 8250 lb/h) |
| Max. Measurement Error | 1.0% o.r. (10–100% o.f.s.), 0.1% o.f.s. (1–10% o.f.s.) |
| Functional Safety | SIL 2 compliant (IEC 61508) |
| Digital Communication | HART, Modbus RS485 |
| Degree of Protection | IP66/67, Type 4X enclosure (Sensor: IP68 optional) |
