Introduction

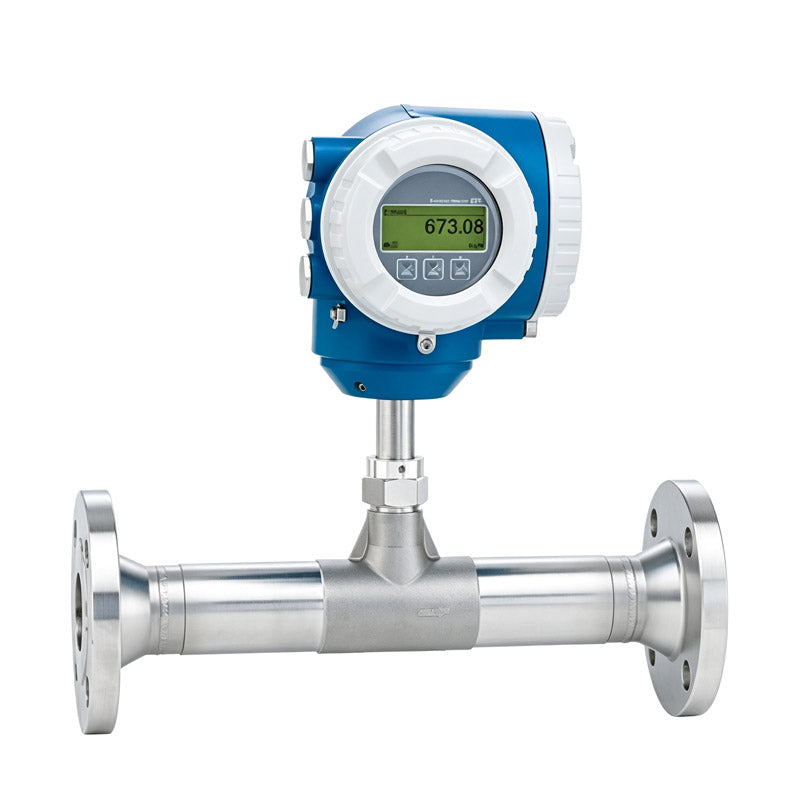

The Endress+Hauser Proline t-mass F 300 is a compact inline thermal mass flowmeter designed for accurate, direct mass flow measurement of utility and process gases in small line sizes (DN15 to DN100). Featuring a patented drift-free sensor with SIL 2 rating, it offers long-term stability and bidirectional measurement, while flexible programming for 21 standard gases and Heartbeat Technology ensure reliable, easy-to-maintain operation in diverse industrial environments.
Key advantages
1. Patented Drift-Free Sensor: With SIL 2 compliance, it delivers premium accuracy and repeatability, maintaining long-term stability without frequent recalibration for process gas applications.
2. Flexible Gas Compatibility: Supports programming for 21 standard gases or custom gas mixtures, offering versatile adaptability for various industrial utility and process gas measurement needs.
3. Bidirectional & Wide-Range Measurement: Features bidirectional flow detection with a high operable flow range, capable of monitoring both forward and reverse flow for comprehensive process control.
4. Compact & Accessible Design: The compact dual-compartment transmitter offers one-side access, touch control, and optional WLAN/remote display, simplifying installation, operation, and maintenance.
5. Integrated Diagnostics & Verification: Equipped with Heartbeat Technology and freely combinable I/Os/fieldbuses, it provides full process and diagnostic data for reliable monitoring and compliance
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Thermal |
| Nominal Diameter Range | DN 15 to DN 100 (1/2" to 4") |
| Wetted Materials | Measuring tube: CF3M/1.4408 (DN15-50); 1.4404/316L (DN65-100) |
| Max. Process Pressure | PN40 / Cl. 300 / 20K |
| Medium Temperature Range | -40 °C to +180 °C (-40 °F to +356 °F) |
| Measuring Range | 0.5 to 3750 kg/h (1.1 to 8250 lb/h) |
| Max. Measurement Error | 1.0% o.r. (10–100% o.f.s.), 0.1% o.f.s. (1–10% o.f.s.) |
| Functional Safety | SIL 2 compliant (IEC 61508) |
| Digital Communication | HART, Modbus RS485 |
| Degree of Protection | IP66/67, Type 4X enclosure |
