Introduction

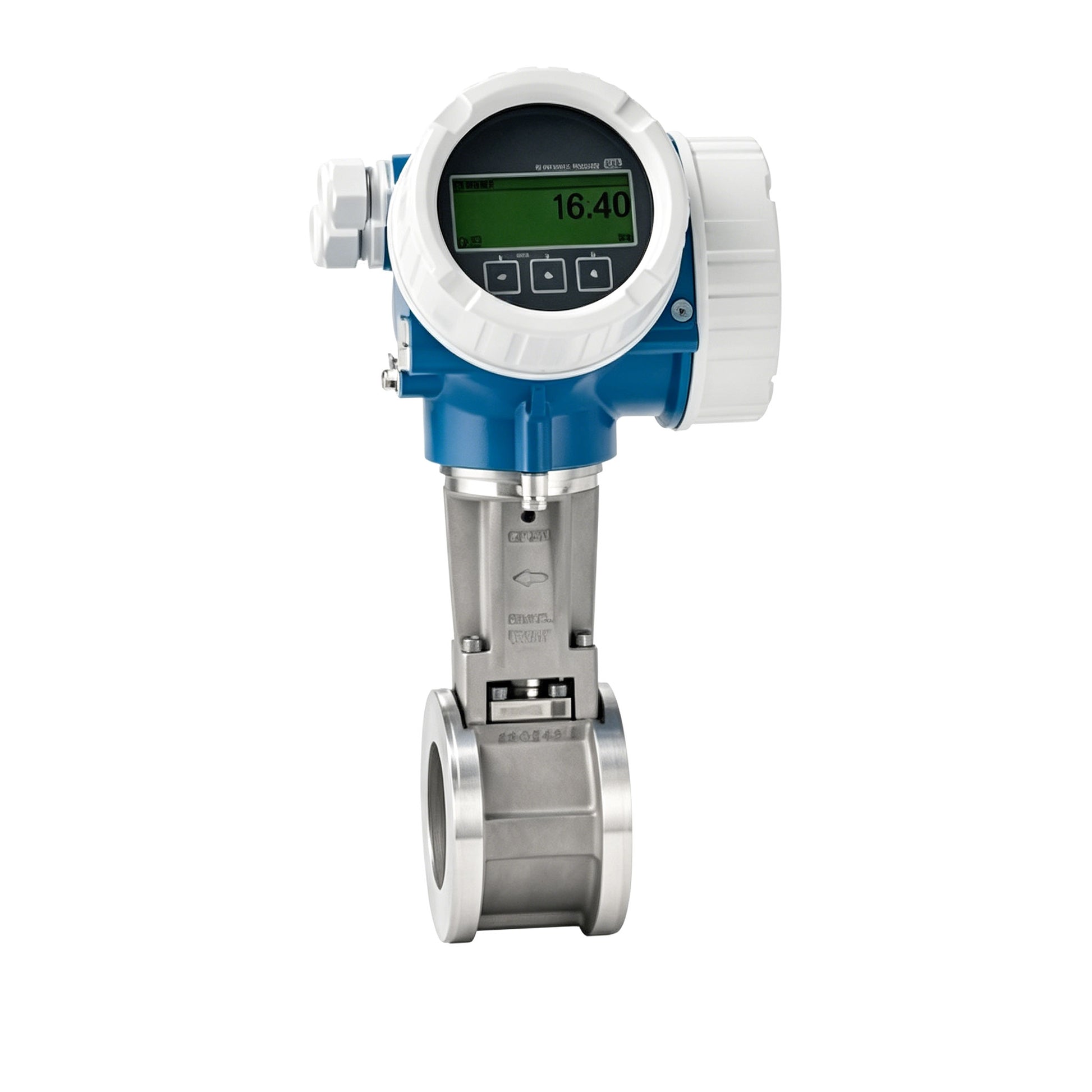

The Endress+Hauser Proline Prowirl D 200 is a compact, wafer-style vortex flowmeter engineered for cost-effective, reliable flow measurement in basic process applications. Designed for direct flange mounting with minimal installation costs, it handles wet/saturated/superheated steam, gases, and cryogenic liquids, while enabling seamless replacement of orifice plates. Integrated temperature measurement supports mass/energy flow calculations, and Heartbeat Technology ensures continuous process safety and verification, making it ideal for auxiliary processes and hazardous areas with SIL approvals.
Key advantages
1. Integrated Temperature & High Accuracy: ±0.75% liquid/±1.00% gas flow error, with built-in temp sensor for saturated steam mass/energy flow calculations, eliminating extra instrumentation.
2. Robust & Low-Maintenance Design: Drift-free capacitive sensor withstands vibrations, water hammer, and -200 to +450°C temperatures; no moving parts reduce wear in industrial environments.
3. Flexible Installation & Compact Footprint: 65mm face-to-face wafer design with included centering rings enables fast, flange-mounted setup; low weight suits space-constrained auxiliary processes.
4. Comprehensive Digital & Safe Operation: 4-line touch display with background lighting (no device opening needed) supports HART/PA/FF/APL comms, plus Heartbeat Technology for in-situ verification.
5. Global Approvals & Wide Process Range: SIL compliance, ATEX/IECEx hazardous area certifications, and marine approvals (ABS/DNV/CCS) support use in diverse industrial sectors worldwide.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Vortex |
| Nominal Diameter Range | DN 15 to 150 (½ to 6") |
| Wetted Materials | Measuring tube: 1.4408 (CF3M); DSC sensor: 1.4435 (316/316L) |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Medium Temperature Range | -40 to +260°C (standard); -200 to +450°C (on request) |
| Max. Measurement Error | Liquid flow: ±0.75%; Steam/gas flow: ±1.00% |
| Outputs | 4-20 mA HART, pulse/frequency/switch output |
| Digital Communication | HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET/Modbus TCP over Ethernet-APL |
| Degree of Protection | IP66/67, Type 4X enclosure |
| Functional Safety | IEC 61508 SIL compliant |
