Description
Introduction

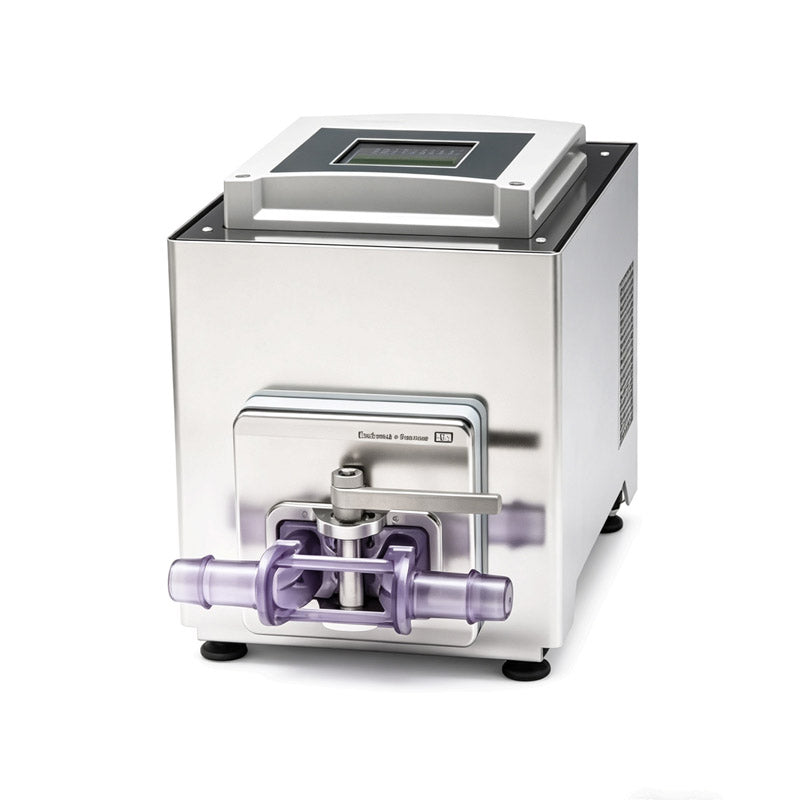

The Proline Promass U 500 (8U5B) by Endress+Hauser is the world’s first single-use Coriolis flow meter for biotech and biopharma. Compliant with cGMP, FDA and 21 CFR Part 11, it accurately measures mass flow, density and temperature while avoiding cross-contamination and CIP/SIP processes.
With Heartbeat Technology™, it offers real-time diagnostics and in-situ verification. Its compact design enables easy cleanroom installation, and 4 I/Os ensure smooth system integration.
With ±0.5% accuracy and disposable sensors, it is ideal for single-use fluid handling, buffer preparation and fill-finish applications.
Key Advantages
- Industry-leading measurement precisionDelivers best-in-class accuracy via advanced Coriolis technology, supporting simultaneous multivariable measurement of mass flow, density, and temperature.
- Full cGMP regulatory complianceEngineered to meet the latest industry standards and guidelines, complete with all required attributes and comprehensive documentation for biopharmaceutical compliance.
- No on-site calibration requiredIntegrated Heartbeat Technology enables fully automated, traceable verification, eliminating the need for manual field calibration and reducing maintenance costs.
Specifications
- Maximum Measurement Uncertainty: Liquid mass flow accuracy: ±0.5% of reading
- Flow Measurement Range: 0 to 75 kg/min (equivalent to 0 to 165.3 lb/min)
- Process Temperature Range: 3 to 60°C (37.4 to 140°F)
- Maximum Operating Pressure: 6 bar (87 psi)
-
Wetted Components
Measuring tubes: Stainless steel 1.4435 / 316L
Hose connection nipple: Makrolon Rx 1805 polycarbonate
