Introduction

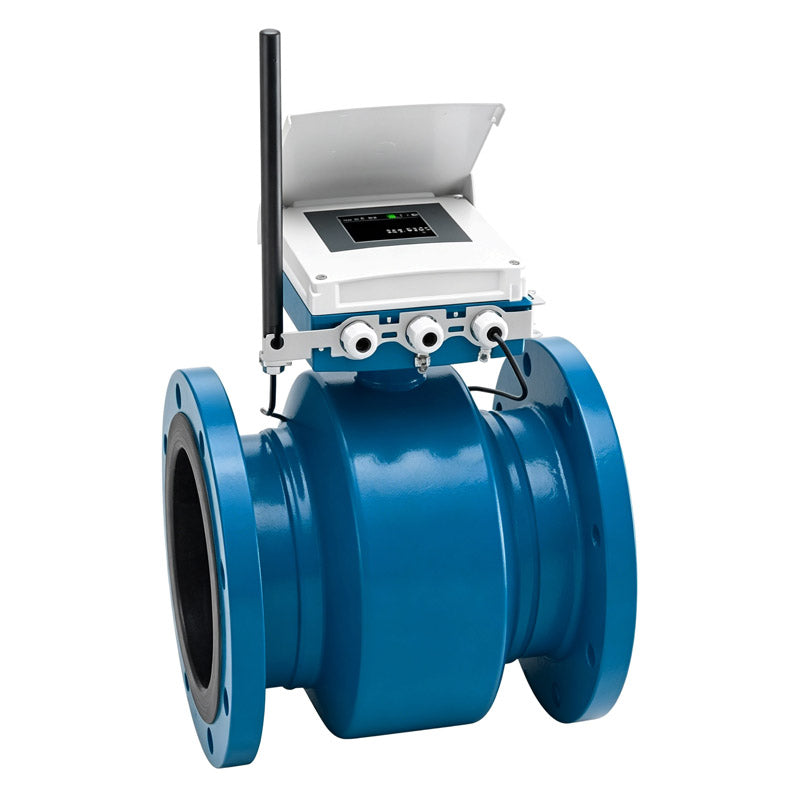

The Endress+Hauser Proline Promag W 800 is a battery-powered electromagnetic flowmeter purpose-built for off-grid water and wastewater applications. Featuring a 15-year battery life, IP68 protection, and LTE encrypted communication, it delivers reliable, maintenance-free measurement in remote, underground, or underwater installations with no external power required.
Key advantages
1. 15-year battery life for off-grid use: Eliminates the need for external power, making it ideal for remote water and wastewater installations with no electricity supply.
2. IP68-rated for harsh environments: Fully protected for direct underground or permanent underwater use, with EN ISO 12944 corrosion protection for long-term durability.
3. Global encrypted LTE communication: Supports LTE Cat M1/NB1/NB2 and GPRS, enabling secure, worldwide data transmission without on-site infrastructure.
4. Custody transfer accuracy: Certified to MI-001/OIML R49 with ±0.5% measurement error, suitable for billing and custody transfer applications.
5. SmartBlue app & Bluetooth control: Offers convenient commissioning and remote operation via Bluetooth and the SmartBlue app, even in hard-to-reach locations.
Specification
| Parameter | Specification |
|---|---|
| Measuring principle | Electromagnetic |
| Nominal diameter range | DN 25 to 900 (1" to 36") |
| Max. process pressure | PN 40, Class 300, 20K |
| Max. medium temperature (hard rubber liner) | +70 °C (+158 °F) |
| Max. medium temperature (polyurethane liner) | +50 °C (+122 °F) |
| Max. medium temperature (PTFE liner) | +70 °C (+158 °F) |
| Max. measurement error | ±0.5% o.r. ± 2 mm/s |
| Measuring range | 9 dm³/min to 22500 m³/h (2.5 to 100000 gal/min) |
| Wetted liner materials | Polyurethane, PTFE, hard rubber |
| Wetted electrode materials | 1.4435 (316L), Alloy C22 |
| Measured variables | Volume flow |
| Digital communication | LTE Cat M1/NB1/NB2, GPRS, EGPRS, Modbus RS485 |
| Power supply | 3.6V DC battery (15-year life); optional AC/DC |
| Degree of protection | IP66/67 (Type 4X), IP68 (Type 6P) |
| Drinking water approvals | ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
