Introduction

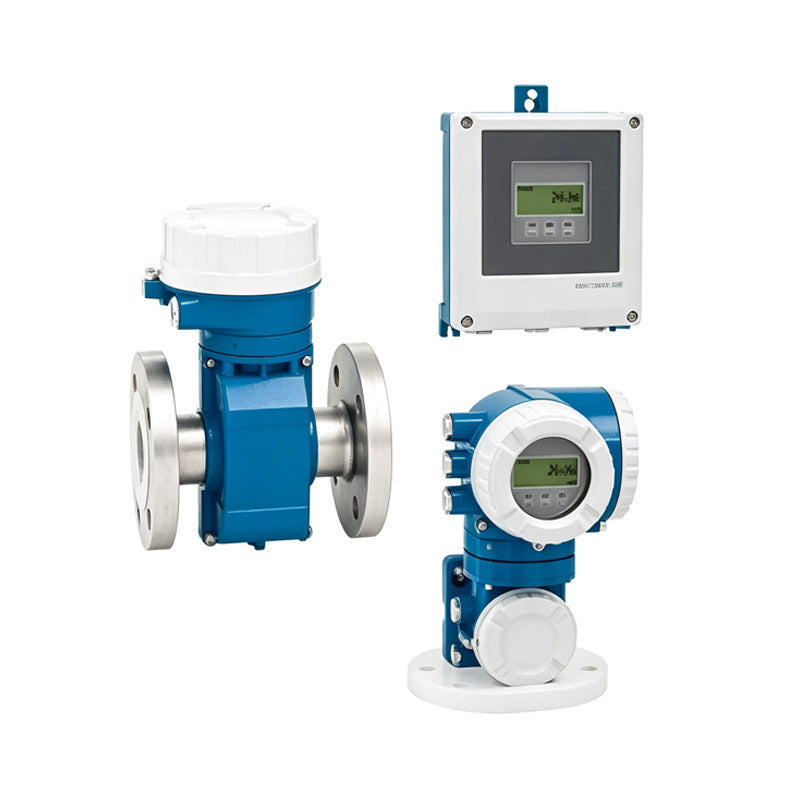

The Endress+Hauser Proline Promag P 500 is a high-performance electromagnetic flowmeter designed for demanding chemical and process applications with corrosive liquids and high medium temperatures. It supports both integrated and remote configurations, offering accurate, pressure-loss-free flow measurement with advanced communication options, Heartbeat Technology, and wide material compatibility for maximum installation flexibility and operational safety.
Key advantages
High-temperature and high-corrosion resistance: Handles media up to +180°C with PFA high-temperature liner and multiple electrode materials, ideal for corrosive fluids in chemical processing.
Remote configuration with up to 4 I/Os: Offers flexible installation in hard-to-reach areas, with freely configurable I/O functionality for seamless system integration.
Industry-leading accuracy: Delivers ±0.2% o.r. measurement error with optional Flat Spec, supported by 0× DN full-bore design for reliable performance after pipe obstructions.
Comprehensive communication and diagnostics: Supports HART, PROFINET, Ethernet/IP, and WLAN access, with full access to process and diagnostic data via Heartbeat Technology.
Extreme versatility for large-scale applications: Nominal diameter up to DN 600 (24") with multiple housing materials and marine approvals, suitable for a wide range of industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Measuring principle | Electromagnetic |
| Nominal diameter range | DN 15 to 600 (½" to 24") |
| Max. process pressure | PN 40, Class 300, 20K |
| Max. medium temperature (PFA high-temp liner) | +180 °C (+356 °F) |
| Max. medium temperature (PFA liner) | +150 °C (+302 °F) |
| Max. medium temperature (PTFE liner) | +130 °C (+266 °F) |
| Max. measurement error (standard) | ±0.5% o.r. ± 1 mm/s |
| Max. measurement error (option) | ±0.2% o.r. ± 2 mm/s (Flat Spec) |
| Measuring range | 4 dm³/min to 9600 m³/h (1 to 44000 gal/min) |
| Wetted liner materials | PFA, PTFE |
| Wetted electrode materials | 1.4435 (316L), Alloy C22, Tantalum, Platinum, Titanium, Duplex 1.4462 |
| Measured variables | Volume flow, conductivity, mass flow |
| Digital communication | HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, PROFINET, Ethernet/IP, OPC-UA |
| Degree of protection | IP66/67, Type 4X enclosure |
| Functional safety | IEC 61508 (SIL), IEC 61511 compliant |
