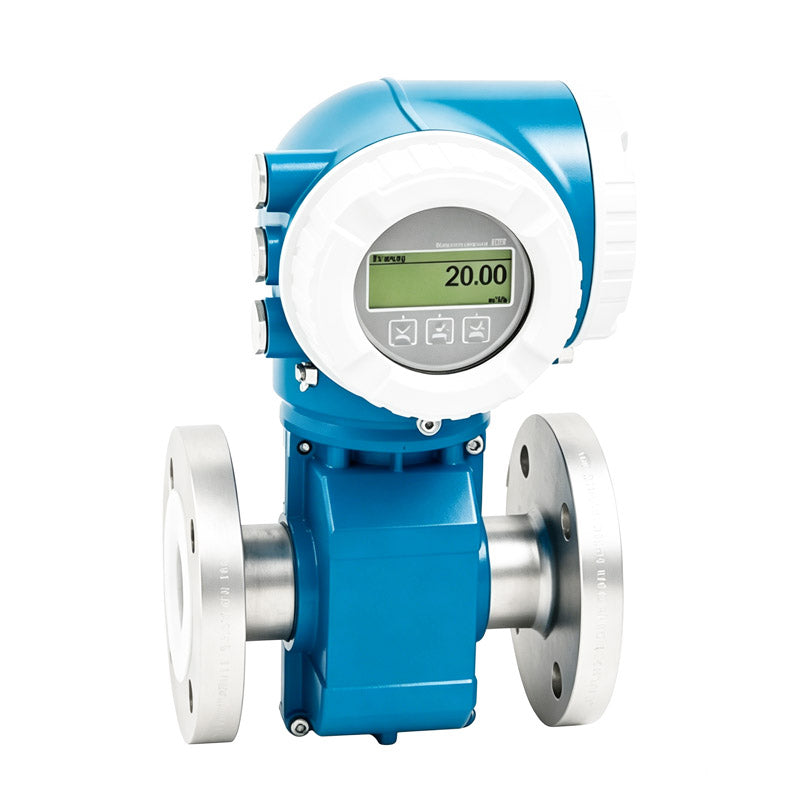

Introduction
Key Advantages
1. Extreme Media Compatibility: Rated for process temperatures up to 180°C (356°F) with a PFA high-temperature liner, paired with specialty wetted materials (Alloy C22, Tantalum) for aggressive chemical media.
2. Flow-Profile Independent Accuracy: Delivers ±0.5% o.r. accuracy (±0.2% optional) with a 0×DN full-bore design, eliminating measurement drift caused by pipe obstructions or turbulent flow.
3. Multi-Protocol System Integration: Supports HART, PROFIBUS, FOUNDATION Fieldbus, Modbus, and Ethernet/IP, with up to 3 configurable I/Os, WLAN access, and remote display capability.
4. Heartbeat-Enabled Compliance: Built-in diagnostics enable continuous verification of the entire measuring point, supporting IEC 61508 functional safety and ISO 17025 traceable calibration.
5. Zero Maintenance Operation: No moving parts and obstruction-free design eliminate wear and pressure loss, while IP66/67 enclosure ensures long-term reliability in harsh industrial environments.
Specifications
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Nominal Diameter Range | DN 15 to DN 600 (½" to 24") |
| Medium Temperature Range | -40 °C to +180 °C (-40 °F to +356 °F) (PFA high-temperature liner) |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Wetted Materials | Liner: PFA / PTFE; Electrodes: 1.4435 (F316L), Alloy C22, Tantalum, Platinum, Titanium |
| Max. Measurement Error | ±0.5 % o.r. ± 1 mm/s (±0.2 % o.r. ± 2 mm/s optional) |
| Digital Communication Protocols | HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, Ethernet/IP, OPC-UA |
| Protection Degree | IP66/67, Type 4X enclosure |
| Functional Safety Compliance | IEC 61508 (SIL) |
| Hazardous Area Approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, UK Ex, KC Ex |
