Introduction

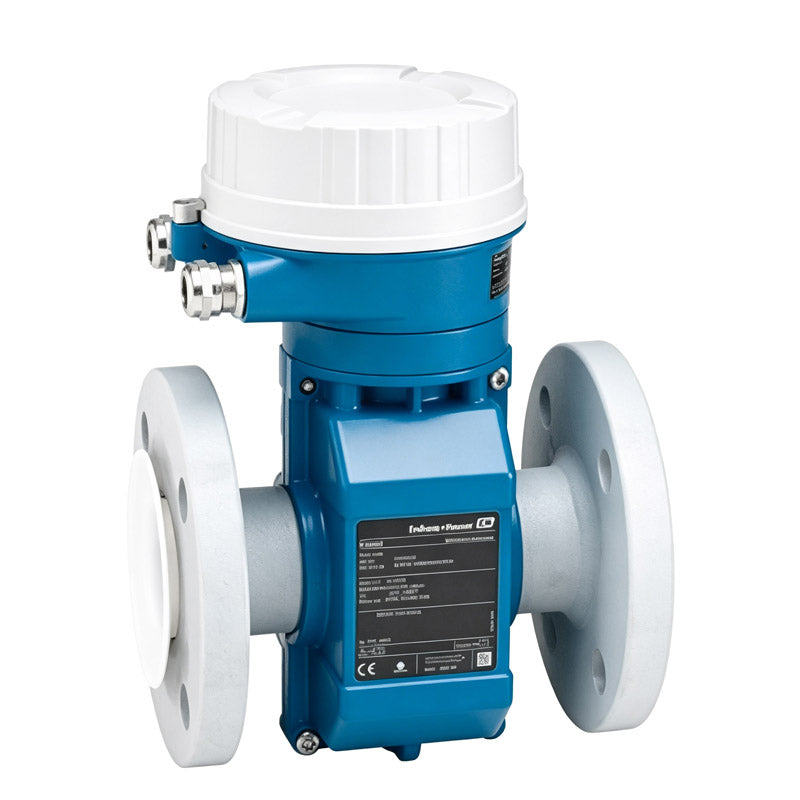

The Proline Promag P 100 is a high-performance electromagnetic flow meter designed for chemical and process applications with corrosive liquids and high temperatures. Featuring an ultra-compact transmitter, PFA/PTFE liners, and Heartbeat Technology, it delivers reliable, maintenance-free flow measurement in demanding environments.
Key advantages
1. High-Temperature & Corrosion Resistance: Supports media up to 180°C with PFA high-temperature liner, compatible with corrosive liquids via PFA/PTFE liners and alloy electrodes.
2. Ultra-Compact Transmitter: Space-saving design with full functionality, ideal for skid builders and equipment manufacturers with limited installation space.
3. Wide Range & High Accuracy: Measures from 4 dm³/min to 9600 m³/h, with ±0.2% optional accuracy, suitable for diverse process flow applications.
4. Flexible Material Options: Offers PFA/PTFE liners and electrodes in 316L, Alloy C22, Tantalum, Platinum or Titanium, tailored to specific fluid compatibility needs.
5. Process Safety & Compliance: Equipped with Heartbeat Technology for continuous verification, meeting global Ex approvals and drinking water certifications (ACS, NSF 61, WRAS).
Specification
| Parameter | Specification |
|---|---|
| Measuring principle | Electromagnetic |
| Nominal diameter range | DN 15 to 600 (½ to 24") |
| Wetted materials (liner) | PFA, PTFE |
| Wetted materials (electrodes) | 1.4435 (316L); Alloy C22; Tantalum; Platinum; Titanium; Duplex 1.4462 |
| Max. measurement error | Volume flow (standard): ±0.5% o.r. ±1 mm/s; (option): ±0.2% o.r. ±2 mm/s |
| Measuring range | 4 dm³/min to 9600 m³/h (1 to 44000 gal/min) |
| Max. process pressure | PN 40, Class 300, 20K |
| Medium temperature range | PFA: -20 to +150°C / +180°C (high-temp); PTFE: -40 to +130°C |
| Ambient temperature range | Carbon steel flange: -10 to +60°C; Stainless steel flange: -40 to +60°C |
| Transmitter housing material | AlSi10Mg, coated |
| Sensor housing material | DN 15-300: AlSi10Mg, coated; DN 350-600: Carbon steel with varnish |
| Degree of protection | IP66/67, Type 4X enclosure |
| Digital communication | HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET |
| Power supply | DC 20 to 30 V |
| Approvals | ATEX, IECEx, ACS, NSF 61, WRAS, LR, DNV, ABS, BV |
