Introduction

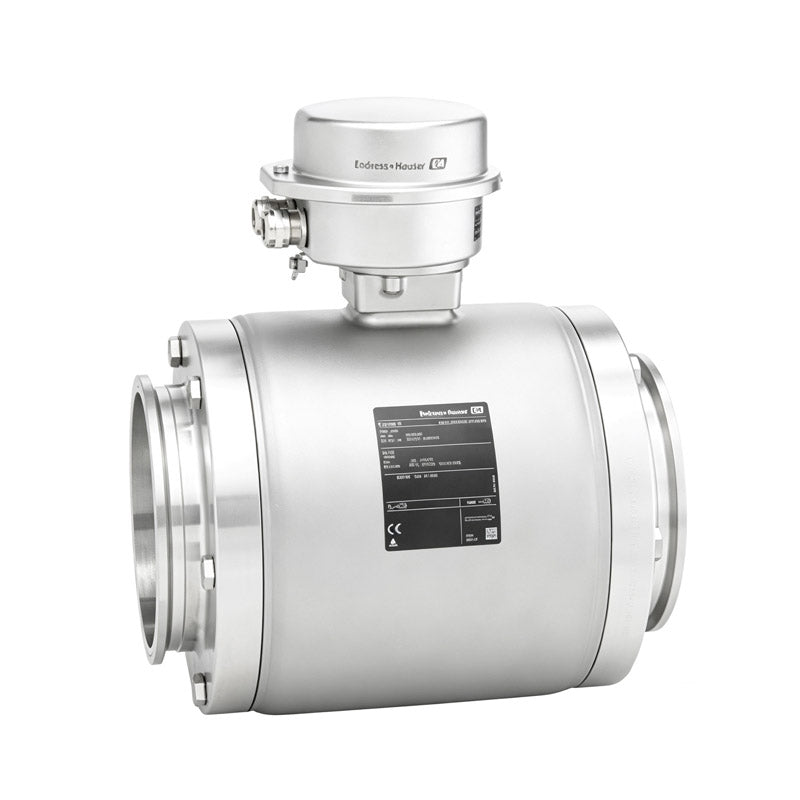

The Endress+Hauser Proline Promag H 100 is a compact, hygienic electromagnetic flowmeter purpose-built for high-demand applications in food & beverage and life sciences. It delivers accurate multivariable measurement of flow, temperature, and conductivity, independent of pressure, density, or viscosity. With its ultra-compact transmitter and CIP/SIP cleanable design, it integrates seamlessly into tight skids and systems, supported by Heartbeat Technology for compliance and process safety.
Key Advantages
1. Multivariable Hygienic Measurement: Measures flow, temperature, conductivity, and mass flow, with ±0.5% accuracy (±0.2% optional) for critical sanitary processes.
2. Ultra-Compact, Space-Saving Design: Features a miniaturized transmitter housing, optimized for tight installations while maintaining full functionality.
3. Full Sanitary Compliance & Cleanability: 3-A, EHEDG, and FDA compliant with CIP/SIP cleanable wetted parts, ideal for demanding food and life science applications.
4. Flexible Communication & Control: Supports HART, PROFIBUS, Modbus, EtherNet/IP, and PROFINET, with integrated web server for easy configuration.
5. Maintenance-Free & Long-Term Reliability: No moving parts and IP69 protection eliminate wear, ensuring long service life with zero routine maintenance.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Nominal Diameter Range | DN 2 to 150 (¹⁄₁₂ to 6") |
| Max. Measurement Error | ±0.5 % o.r. ± 1 mm/s (±0.2 % optional) |
| Measured Variables | Volume flow, temperature, conductivity, mass flow |
| Max. Process Pressure | PN 40, Class 150, 20K |
| Wetted Materials | Liner: PFA; Electrodes: 1.4435 (316L), Alloy C22, Tantalum, Platinum |
| Hygienic Approvals | 3-A, EHEDG, FDA compliant, cGMP |
| Digital Communication | HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET |
| Protection Degree | IP66/67, Type 4X enclosure (IP69 optional) |
| Medium Temperature Range | –20 to +150 °C (–4 to +302 °F) |
