Introduction

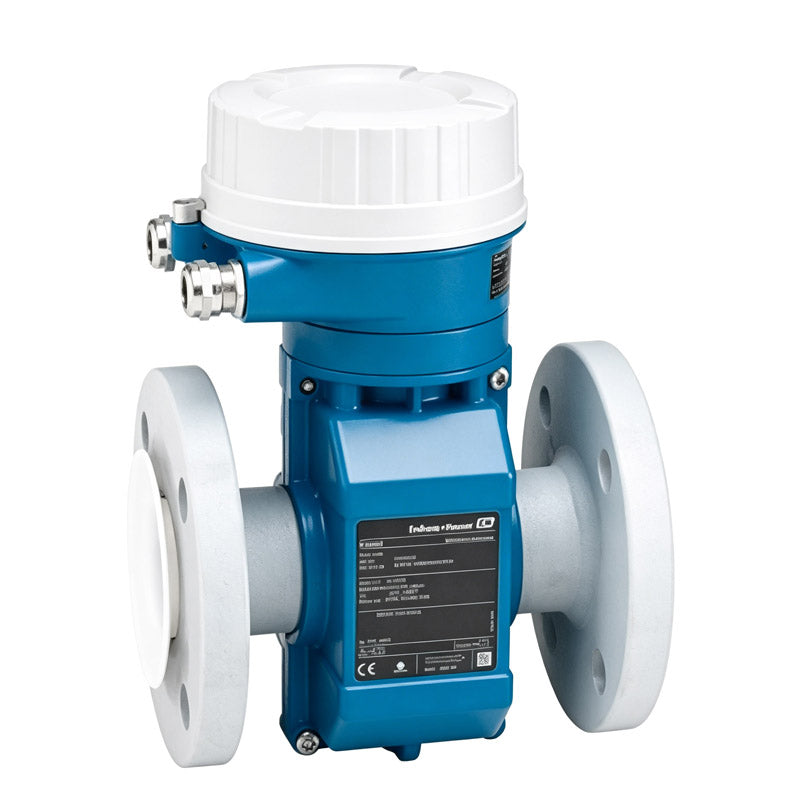

The Endress+Hauser Proline Promag E 100 is an economical electromagnetic flowmeter designed for basic, reliable measurement of conductive liquids in chemical and process industries. Featuring an ultra-compact transmitter, it offers maintenance-free operation, zero pressure loss, and Heartbeat Technology for compliance, making it ideal for skid builders and equipment integrators.
Key advantages
1. Ultra-Compact Footprint: Delivers full functionality in the smallest transmitter housing, enabling seamless integration into space-constrained skids and OEM equipment layouts.
2. High Accuracy & Zero Pressure Loss: Measures volume flow with ±0.5% standard accuracy (±0.2% optional) without cross-section constriction, eliminating process pressure drop.
3. Maintenance-Free Design: No moving parts ensure long-term reliability and zero maintenance costs, even in continuous industrial operation.
4. Smart Diagnostics with Heartbeat Tech: Integrated verification and compliance-ready Heartbeat Technology supports ISO 9001 traceability and process safety.
5. Flexible Communication & Power Options: Supports HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, and PROFINET with 20–30 V DC power for versatile system integration.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Application | Conductive liquids, chemical & process industry |
| Nominal Diameter Range | DN 15 to DN 600 (½" to 24") |
| Wetted Materials | Liner: PTFE; Electrodes: 316L (1.4435), Alloy C22, Tantalum |
| Max. Measurement Error | ±0.5% o.r. ±1 mm/s (standard); ±0.2% o.r. ±2 mm/s (optional) |
| Process Pressure Rating | PN 40, Class 150, 20K |
| Medium Temperature Range | -10 to +110 °C (+14 to +230 °F) |
| Power Supply | DC 20–30 V |
| Communication Protocols | HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET |
| Protection Class | IP67, Type 4X enclosure |
