Introduction

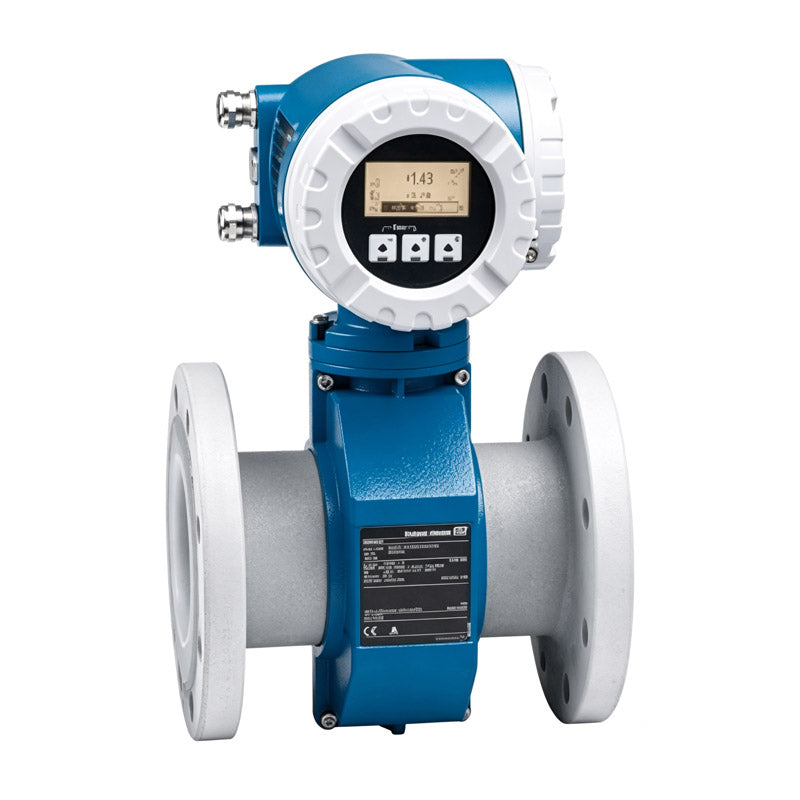

The Endress+Hauser Proline Promag 55S is a robust electromagnetic flowmeter purpose-built for inhomogeneous, abrasive, and corrosive fluids in demanding industries like pulp & paper, mining, and wastewater. It offers integrated solids content diagnostics, high abrasion resistance, and multi-protocol communication for reliable, low-maintenance flow measurement.
Key advantages
1. Extreme abrasion resistance: Features industry-optimized liners (polyurethane, rubber) and electrodes, built to handle fluids with up to 80% solids by weight.
2. Integrated solids content diagnostics: Unique signal processing enables accurate flow measurement even in high-solids, abrasive slurries without additional sensors.
3. High-performance signal stability: Intensified coil system and electrode cleaning ensure reliable operation in harsh environments, reducing downtime and maintenance.
4. Wide material compatibility: Offers multiple liner and electrode options (alloy C22, tungsten carbide, tantalum) for corrosive and abrasive fluid applications.
5. Multi-protocol integration: Supports HART, PROFIBUS PA/DP, and FOUNDATION Fieldbus, enabling seamless integration into industrial control systems.
Specification
| Parameter | Specification |
|---|---|
| Measuring principle | Electromagnetic |
| Nominal diameter range | DN 15 to 600 (½" to 24") |
| Max. process pressure | PN 40, Class 300, JIS 20K |
| Max. solids content | Up to 80% by weight |
| Max. medium temperature | +180 °C (+356 °F) (with suitable liner) |
| Max. measurement error (standard) | ±0.5% o.r. ± 1 mm/s |
| Max. measurement error (option) | ±0.2% o.r. ± 2 mm/s |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) |
| Wetted liner materials | Polyurethane, hard rubber, PFA, PTFE, natural rubber |
| Wetted electrode materials | 1.4435 (316L), Alloy C22, Tantalum, Platinum, Duplex 1.4465, Tungsten carbide, Titanium |
| Measured variables | Volume flow, conductivity, mass flow |
| Digital communication | HART, PROFIBUS DP/PA, FOUNDATION Fieldbus |
| Power supply | AC 20–260 V; DC 20–64 V |
| Degree of protection | IP67 (Type 4X); optional IP68 (Type 6P) |
| Hazardous area approvals | ATEX, FM, CSA, UK Ex |
