Description
Introduction

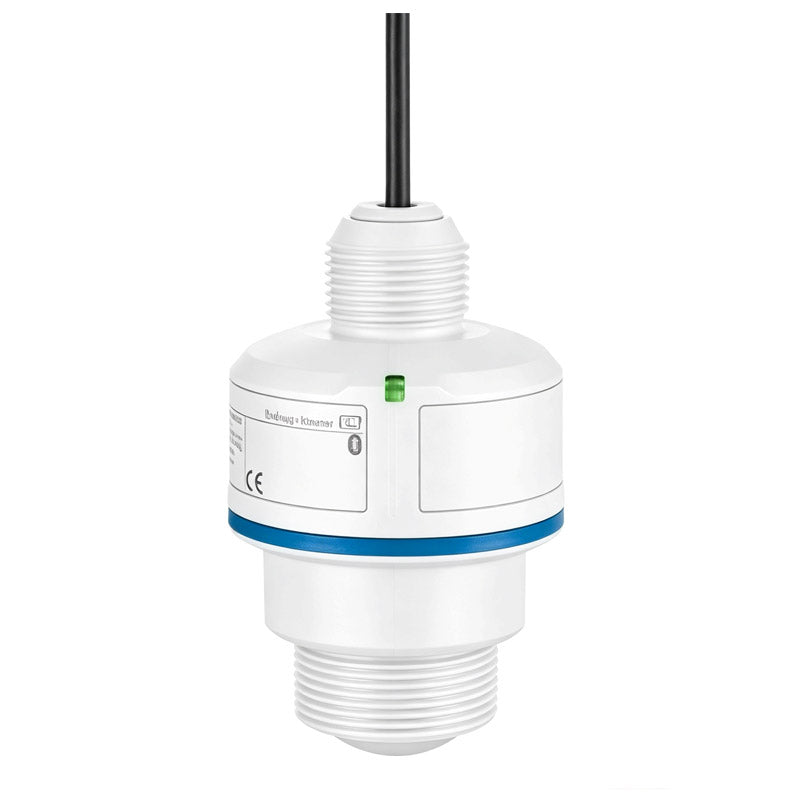

The Endress+Hauser Micropilot FMR20B combines compact design, 80 GHz radar technology, and ±2 mm accuracy for hassle-free liquid and solid level measurement. With guided setup wizards, Bluetooth remote access, and Heartbeat Technology diagnostics, the FMR20B cuts commissioning time and reduces maintenance needs. It’s the ideal cost-effective choice for water/wastewater, mining, and general industrial storage tanks and silos.
Specifications
| Parameter | Value |
|---|---|
| Measurement Principle | 80 GHz Radar Level Technology |
| Key Applications | Water & wastewater, general utility, storage tanks |
| Accuracy | Liquids: ± 5 mm; Solids: ± 10 mm |
| Max. Measuring Distance | 10 m (32.8 ft) |
| Operating Temperature | -40 to +60 °C (-40 to +140 °F) |
| Pressure Range | -1 to +3 bar (-14.5 to +43 psi) |
| Wetted Materials | PVDF, PBT/PC |
| Communication | 4…20 mA; Optional Bluetooth® with SmartBlue App |
Key Advantages
-
Versatile 80 GHz Radar TechnologyReliable non-contact level measurement for both liquids and solids, ideal for water/wastewater and general industrial applications.
-
Simple & Smart OperationBluetooth® commissioning with the SmartBlue App enables easy setup, remote access, and maintenance without complex configurations.
-
Robust Performance in Basic Conditions
With ±5 mm / ±10 mm accuracy, it delivers consistent readings across a 10 m range, even in typical industrial environments.
