Description
Introduction

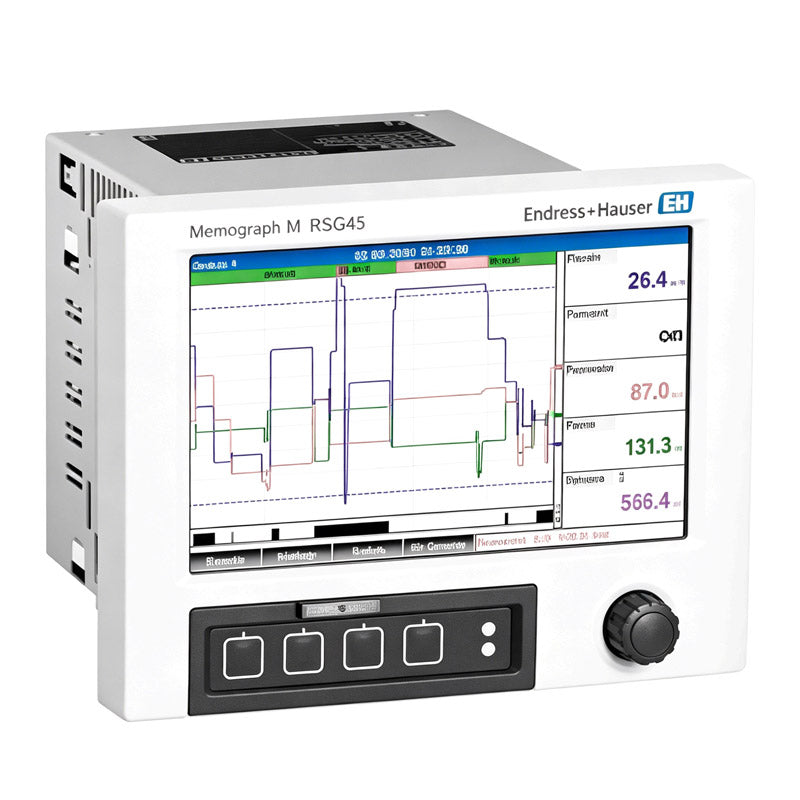

The Endress+Hauser Memograph M RSG45 is a high-performance advanced data manager and data logger designed for industrial process and energy management. As a central data acquisition system, it captures, visualizes, logs, and analyzes process values from up to 20 analog/HART sensors and 14 digital inputs, enabling secure, tamper-proof data storage compliant with FDA 21 CFR 11. Ideal for demanding industries including food & pharma, power stations, steam boiler monitoring, and environmental applications.
Supports up to 20 analog inputs, 20 HART-compatible sensors, and 14 digital inputs, enabling multi-variable process monitoring in a single device, eliminating the need for multiple standalone loggers.
Tamper-Proof, Audit-Ready Data Compliance
Delivers FDA 21 CFR 11-compliant data security with electronic signature and tamper-proof storage, ensuring traceability for regulated industries like pharmaceuticals and food processing.
High-Speed Data Acquisition & Modular Expansion
Features a 100 ms scan rate and modular design for easy expansion, enabling fast, high-resolution signal recording and future-proof scalability for evolving process requirements.
Multi-Protocol Communication & Remote Access
Supports all major fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) and includes an integrated web server, allowing remote device configuration, visualization, and maintenance without on-site intervention.
Flexible Mounting & Rugged Industrial Design
Offers multiple housing options (panel mount, DIN rail, desktop, field) with stainless steel front for touch operation in hygienic or hazardous environments, adapting to both control room and field installations.
Specification
| Parameter | Specification |
|---|---|
| Product Type | Advanced Data Manager / Data Logger |
| Max. Analog Inputs | 20 (supports U, I, TC, RTD, frequency, pulse) |
| Max. HART Inputs | 20 (compatible with 4…20mA HART sensors) |
| Max. Digital Inputs | 14 (control, event, counting inputs) |
| Scan Rate | 100 ms |
| Max. Relay Outputs | 12 |
| Communication Protocols | Modbus RTU/TCP, Profibus DP, PROFINET, EtherNet/IP |
| Display | 7" TFT color graphic display (optional touch panel) |
| Storage Options | Internal memory, SD card, USB flash drive |
| Power Supply | 100…230 V AC ±10% / 24 V AC/DC (-10% / +15%) |
Key Advantages
High Channel Density & HART IntegrationSupports up to 20 analog inputs, 20 HART-compatible sensors, and 14 digital inputs, enabling multi-variable process monitoring in a single device, eliminating the need for multiple standalone loggers.
Tamper-Proof, Audit-Ready Data Compliance
Delivers FDA 21 CFR 11-compliant data security with electronic signature and tamper-proof storage, ensuring traceability for regulated industries like pharmaceuticals and food processing.
High-Speed Data Acquisition & Modular Expansion
Features a 100 ms scan rate and modular design for easy expansion, enabling fast, high-resolution signal recording and future-proof scalability for evolving process requirements.
Multi-Protocol Communication & Remote Access
Supports all major fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) and includes an integrated web server, allowing remote device configuration, visualization, and maintenance without on-site intervention.
Flexible Mounting & Rugged Industrial Design
Offers multiple housing options (panel mount, DIN rail, desktop, field) with stainless steel front for touch operation in hygienic or hazardous environments, adapting to both control room and field installations.
