Introduction

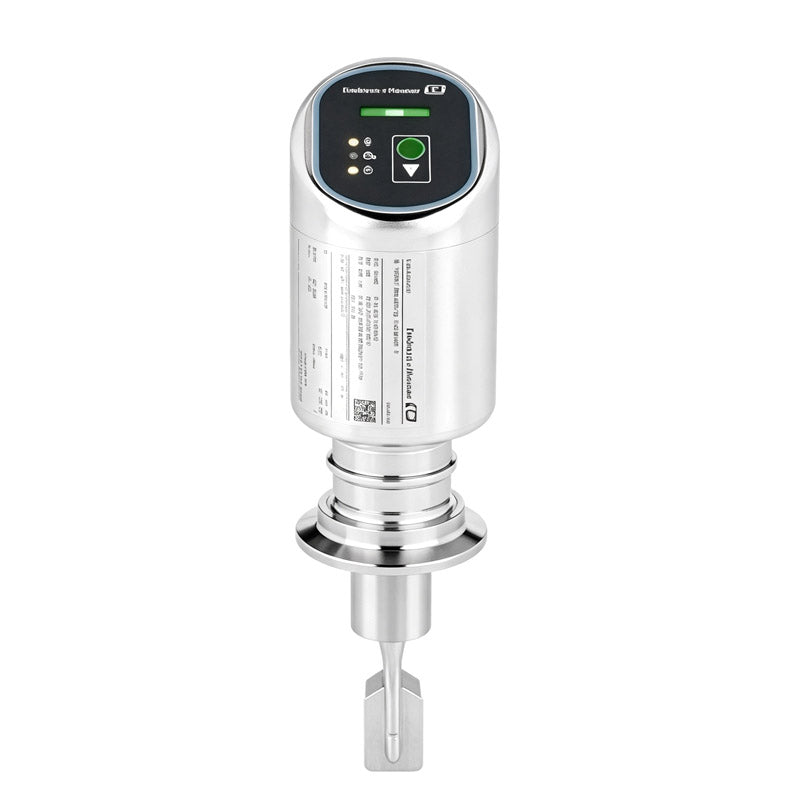

The Endress+Hauser Liquiphant FTL43 is a compact, hygienic tuning fork level switch purpose-built for liquid applications in food & beverage, life sciences, and aseptic processes. It delivers reliable, maintenance-free high/low level detection, overfill protection, and pump dry-run prevention—even in narrow skids, pipelines, and tight process tanks. With plug-and-play functionality, certified hygienic design, and optional IO-Link/Bluetooth communication, it combines ease of use with continuous diagnostics via Heartbeat Technology, making it ideal for both standard and demanding sanitary environments.
Key advantages
- Sanitary & Versatile Hygienic Design：Electro-polished 316L wetted parts, certified to 3-A, EHEDG, and global food contact standards (FDA, EC 1935/2004), supporting Tri-Clamp, Ingold, and other industry-standard hygienic connections.
- Wide Operating Range with High Pressure/Temp Resistance：Reliable performance from -40 °C to +150 °C process temperature and vacuum to 64 bar (928 psi) overpressure, with optional density compatibility down to 0.4 g/cm³.
- Smart Diagnostics & Safety Compliance：CRC checksum algorithm ensures parameter integrity, while Heartbeat Technology enables on-demand verification without process interruption, supporting WHG overfill protection compliance.
- Flexible Communication & Easy Integration：IO-Link, HART, and Bluetooth connectivity enable remote configuration, monitoring, and maintenance, paired with one-button operation and plug-and-play commissioning for fast setup.
- Compact & Adaptable Form Factor：Optional pipe extensions up to 1.5m (5 ft) fit narrow skids and modules, while the compact hygiene housing minimizes installation footprint without compromising performance.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Vibronic (Tuning Fork) for Liquids |
| Primary Application | Hygienic/Aseptic Point Level Detection (Food & Beverage, Life Sciences) |
| Ambient Temperature Range | -40 °C ... +85 °C (-40 °F ... +185 °F) |
| Process Temperature Range | -40 °C ... +150 °C (-40 °F ... +302 °F) |
| Process Pressure / Max. Overpressure | Vacuum ... 64 bar (Vacuum ... 928 psi) |
| Minimum Medium Density | 0.5 g/cm³ (25.0 lb/ft³); 0.4 g/cm³ (31.2 lb/ft³, optional) |
| Main Wetted Parts Material | 316L Stainless Steel |
| Communication Protocols | IO-Link, HART, Bluetooth® Wireless Technology |
| Sensor Length Range | 148 mm ... 1500 mm (6.00" ... 59") |
| Power Supply | 12 ... 30V DC-PNP |
| Hygienic Process Connections | Tri-Clamp, DIN 11851, DIN 11864-1, Ingold, Flush mount, DRD, SMS1145, Varivent (Varinline) |
| Certificates & Approvals | ATEX, IEC Ex, CAN/US, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex/CCC, UK Ex; 3-A, EHEDG, FDA CFR 21, EC 1935/2004, GB 4806, WHG Overfill Protection |
