Introduction

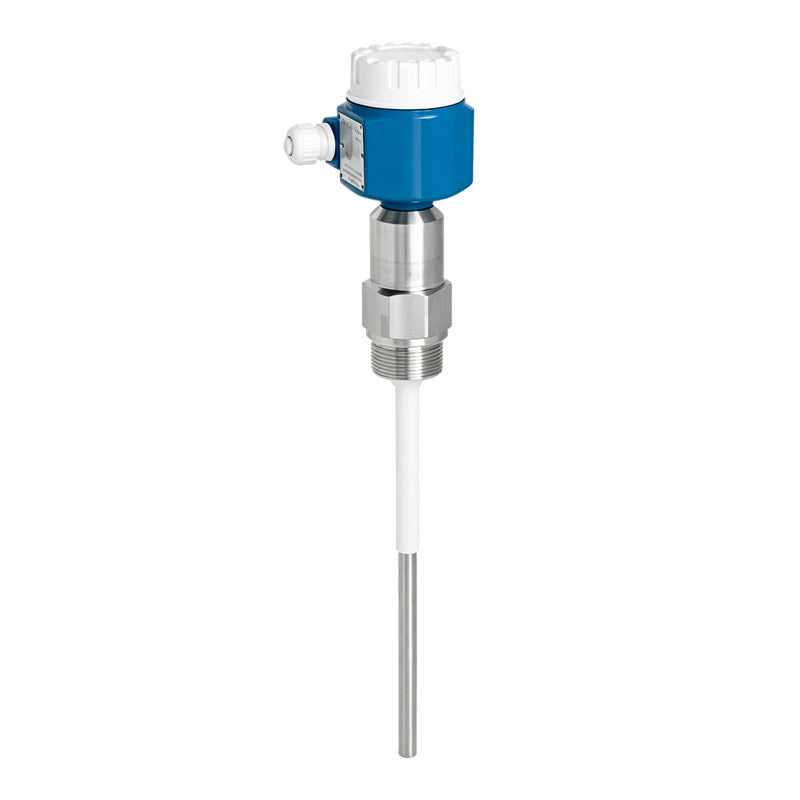

The Endress+Hauser Liquicap FTI51 is a robust capacitive rod probe designed for point level detection in highly viscous, build-up forming liquids. Featuring active build-up compensation, it delivers reliable level, interface, and foam detection in demanding industrial and hygienic applications, with flexible communication and comprehensive global approvals.
Key advantages
1. Active Build-Up Compensation: Eliminates false triggers from sticky, high-viscosity media deposits, ensuring reliable point level switching without routine maintenance.
2. Multi-Function Detection: Detects liquid level, liquid-liquid interfaces, and foam in conductive media, enabling dual-point pump control with just one process connection.
3. Extreme Process Resilience: Withstands temperatures from -80°C to +200°C and pressures up to 100 bar, suitable for harsh industrial environments.
4. Fast, Calibration-Free Commissioning: One-button calibration allows quick setup; no recalibration needed after electronics replacement, reducing downtime.
5. Universal Compliance & Safety: SIL and WHG overfill prevention certified, with ATEX, marine, and hygienic approvals for use across global industries.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Capacitive point level detection |
| Measuring Functions | Level, interface, and foam detection |
| Process Temperature | -80°C to +200°C (-112°F to +392°F) |
| Ambient Temperature | -50°C to +70°C (-58°F to +158°F); -50°C to +120°C with separate housing |
| Process Pressure | Vacuum to 100 bar (Vacuum to 1450 psi) |
| Wetted Parts | 316L stainless steel; Insulation: PTFE/PFA |
| Sensor Length | Max. 6 m (20 ft) |
| Communication | 2-wire AC, 3-wire, PFM, Relay DPDT, DC-PNP, 8/16 mA |
| Safety Approvals | SIL, WHG overfill prevention, ATEX, FM, CSA, marine approvals |
| Key Feature | Active build-up compensation for high-viscosity, build-up forming media |
