Description
Introduction

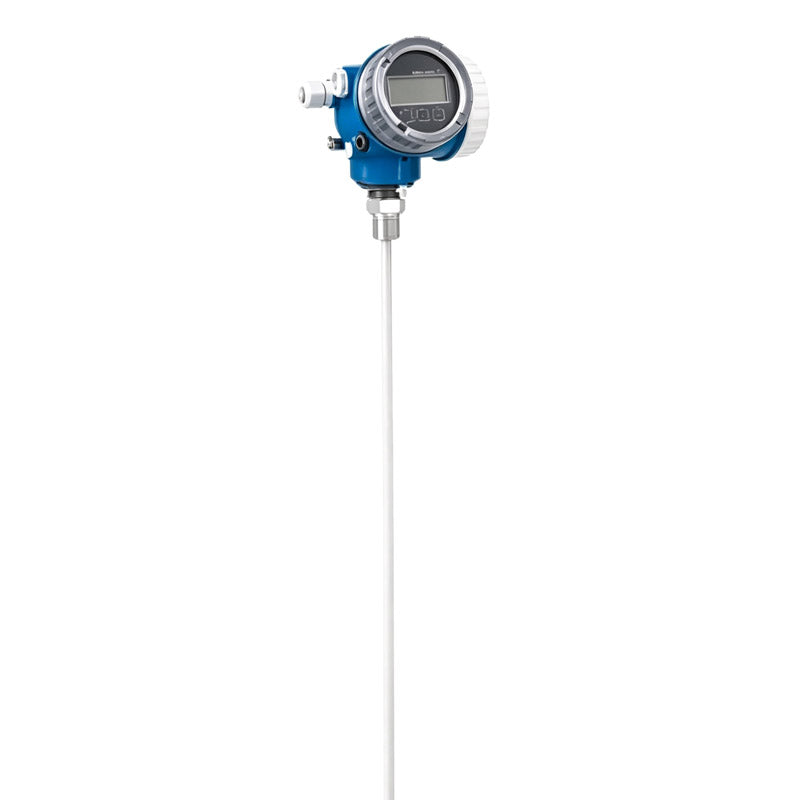

The Endress+Hauser Levelflex FMP50 is a compact guided wave radar (Time-of-Flight) level transmitter designed for reliable, continuous level measurement in liquids. Engineered for basic industrial applications, it delivers accurate readings with minimal maintenance, even in confined spaces or simple tank conditions. Its robust design and easy commissioning make it ideal for storage tanks and general process environments.
Specifications
| Parameter | Value |
|---|---|
| Measuring Principle | Guided Radar (Time-of-Flight) |
| Max. Measuring Distance | Rod probe: 4 m (13 ft); Rope probe: 12 m (40 ft) |
| Accuracy | ± 2 mm (0.08 in) |
| Process Temperature | -20 to +80 °C (-4 to +176 °F) |
| Ambient Temperature | -20 to +80 °C (-4 to +176 °F) |
| Pressure Range | Vacuum to 6 bar (Vacuum to 87 psi) |
| Wetted Materials | 316L/316 Stainless Steel, PPS, Viton |
| Communication / Output | 4…20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus; Optional Bluetooth® with SmartBlue App |
Key Advantages
Versatile Continuous Level Monitoring
Delivers reliable, continuous level measurement for liquids, pastes, and slurries, unaffected by changing media, temperature shifts, or vapor conditions.
Delivers reliable, continuous level measurement for liquids, pastes, and slurries, unaffected by changing media, temperature shifts, or vapor conditions.
Flexible Configuration Options
Choose between rod (up to 4m) or rope (up to 12m) probes, with thread or flange connections to fit diverse basic storage and utility applications.
Smart, Efficient Commissioning & Maintenance
Integrated Heartbeat Technology and HistoROM enable fast setup, diagnostics, and easy operation via the SmartBlue App (optional Bluetooth connectivity).
High Precision & Industrial-Grade Reliability
Achieves ±2 mm measurement accuracy with Multi-Echo Tracking, built to IEC 61508 (SIL3) standards for long-term, dependable performance.
Cost-Effective Safety & Compliance
Streamlined proof testing for SIL and WHG certifications saves time and costs, ideal for safe, efficient plant operation throughout its lifecycle.
