Introduction

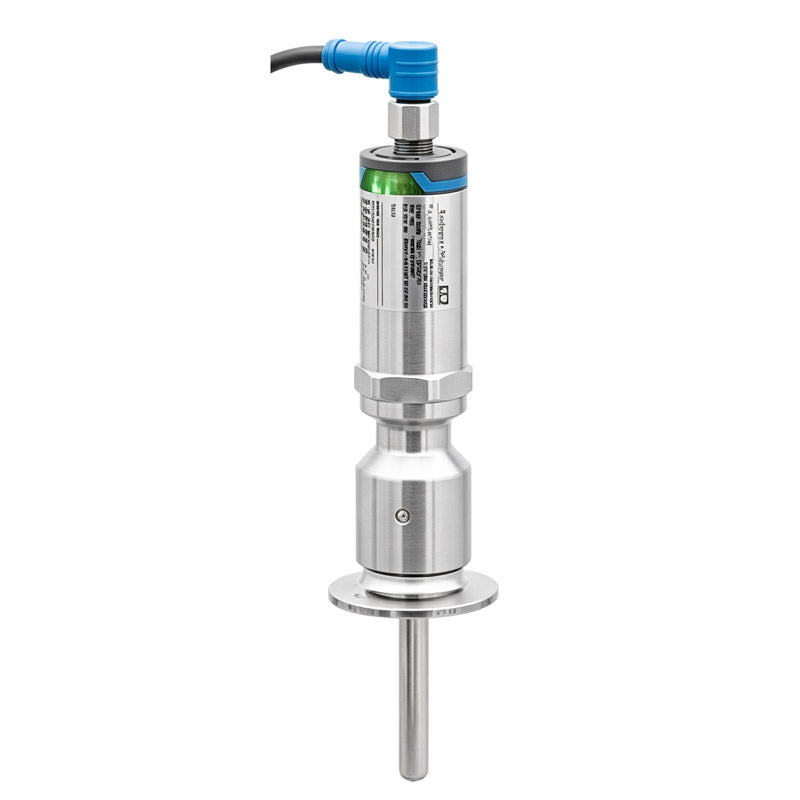

The Endress+Hauser iTHERM TrustSens TM372 is the imperial-style version of the world’s first fully self-calibrating RTD thermometer, purpose-built for hygienic and aseptic processes in food, beverage, and life sciences industries. Featuring automated in-situ calibration at 118 °C (SIP) and 39 °C (CIP), paired with Heartbeat Technology, it eliminates production downtime for recalibration while maintaining continuous compliance with FDA, 3-A, and EHEDG standards.
Specification
| Specification | Details |
|---|---|
| Measuring Principle | Resistance Temperature Detector (RTD) |
| Core Application | Self-calibrating hygienic RTD for life sciences & food/beverage (imperial style) |
| Probe Diameters (Imperial) | 1/4" (6.35 mm), 3/8" (9.53 mm), 1/2" (12.7 mm) |
| Operating Temperature Range | Pt100: -40 °C to 160 °C (optional up to 190 °C) |
| Max. Static Process Pressure | 40 bar (580 psi) at 20 °C |
| Response Time | t50 = 2.5 s; t90 = 9.5 s |
| Material | 316L stainless steel (protection tube/thermowell) |
| Certifications & Output | ATEX/IECEx, CSA C/US IS; 4-20 mA signal |
Key Advantages
Imperial-Specific Hygienic Calibration: The only self-calibrating RTD built to imperial dimensions, tailored for North American food and beverage, and life sciences facilities.
Zero-Downtime Compliance & Traceability: Automated in-situ calibration eliminates shutdowns, with audit-proof documentation and 350-point memory to meet FDA/GMP requirements.
Heartbeat-Enabled Continuous Safety: Real-time device diagnostics, drift detection, and automated loop checks ensure consistent performance in SIP/CIP processes.
Factory-Matched Precision & Durability: High-grade 316L construction and factory-calibrated sensor-transmitter pairing deliver accuracy up to 40 bar static pressure.
Simplified Integration & Validation: Preconfigured for quick commissioning, with guided setup wizards and support for Tri-clamp, Varivent, and other hygienic process connections.
