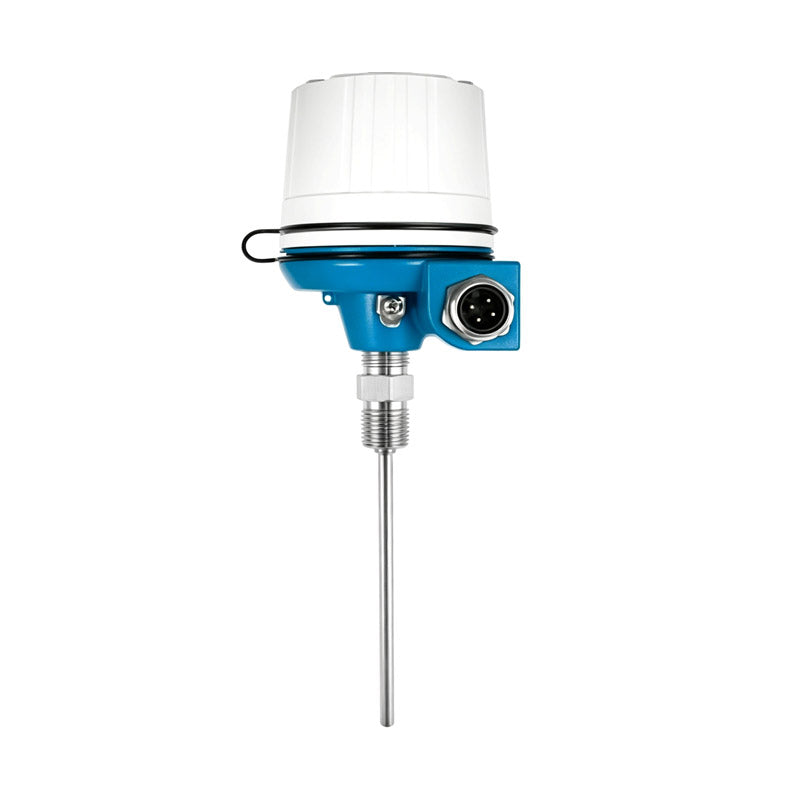

Endress+Hauser iTHERM ModuLine TM112 Industrial Thermometer

Endress+Hauser iTHERM ModuLine TM112 Industrial Thermometer

Send Your Inquiry




View full details
Description

Introduction

The iTHERM ModuLine TM112 is a modular, direct-contact RTD/TC industrial thermometer designed for universal use across all industries. With a flexible, single-order configuration, it delivers fast response times (t90 < 1.5s with QuickSens) and high vibration resistance (StrongSens) for reliable performance in both basic and high-end applications. It supports common communication protocols, optional Bluetooth connectivity, and international hazardous-area certifications (ATEX, IECEx, CSA), making it suitable for power, chemical, oil & gas, and utility processes.

Specification

Category Specification Details
Measuring Principle Resistance Temperature Detector (RTD) / Thermocouple
Key Features Imperial style, direct process contact, compatible with iTHERM StrongSens / QuickSens, suitable for hazardous areas
Probe Design Mineral insulated (MI) flexible probe; outer diameters: 1/8", 1/4", 3/8", 3.0 mm, 6.0 mm
Process Connection NPT thread (1/2", 3/4"); compression fitting (NPT1/4", NPT1/2", spring-loaded option)
Temperature Range PT100 TF StrongSens: -50 °C ... 500 °C

PT100 TF QuickSens: -50 °C ... 200 °C

PT100 WW: -200 °C ... 600 °C

Thermocouple K/N: up to 1100 °C
Accuracy Class AA/A/B acc. to IEC 60751; Class 1/2 acc. to IEC 60584-2; ASTM E230 compliant
Response Time t90 starting at < 1.5 s (with iTHERM QuickSens, configuration-dependent)
Integration & Certifications Supports 4…20 mA / HART / PROFIBUS PA / FOUNDATION Fieldbus; ATEX/IECEx/CSA hazardous area approvals; SIL rated transmitter



Key Advantages

  1. Flexible Modular Configuration
    Customizable components under a single order code, adapting seamlessly to applications from basic to high-end across all industries.
  2. Ultra-Fast Response with QuickSens
    Achieves t90 response times starting at <1.5 seconds, enabling faster process adjustments and improved efficiency.
  3. Enhanced Durability with StrongSens
    High vibration resistance ensures reliable performance in demanding industrial environments, extending sensor lifespan.
  4. Universal Compatibility & Connectivity
    Supports all common communication protocols, plus optional Bluetooth® for wireless configuration and monitoring.
  5. Global Hazardous-Area Certified
    Compliant with ATEX, IECEx, CSA C/US, and NEPSI standards, ensuring safe use in explosive and harsh industrial zones.
