Description
Introduction

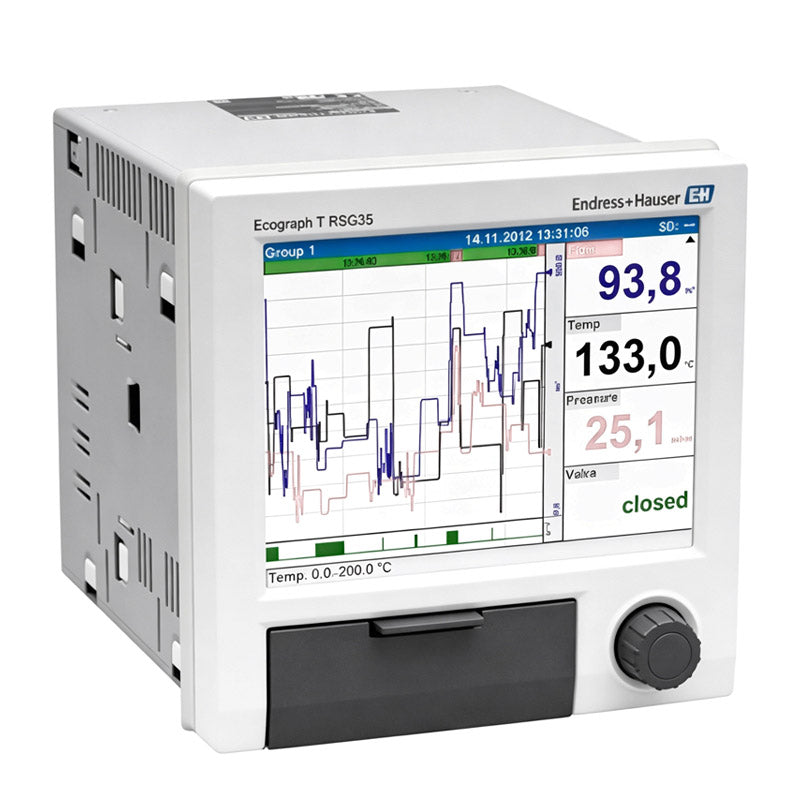

The Endress+Hauser Ecograph T RSG35 is a versatile universal graphic data manager designed for reliable recording, visualization, and monitoring of process signals in industrial environments. Its compact design and intuitive operation make it ideal for water/wastewater, metalworking, power stations, and general process monitoring applications, enabling cost-effective, simplified data acquisition for quality control, compliance, and process optimization.
Specification
| Parameter | Specification |
|---|---|
| Product Type | Universal Graphic Data Manager |
| Max. Analog Inputs | 12 (supports U, I, TC, RTD, frequency, pulse) |
| Max. Digital Inputs | 6 |
| Max. Outputs | 6 relays + 1 transmitter power supply |
| Display | 5.7" TFT color graphic display |
| Storage Options | Internal memory, SD card, USB flash drive |
| Communication Interfaces | Ethernet, USB, optional RS232/485 + Modbus RTU/TCP Slave |
| Mounting Options | Panel mounting, desktop housing, field housing |
| Certifications | UL recognized |
| Core Software Features | Built-in mathematics package, alarm email notification |
Key Advantages
- High-Channel Versatility: Supports up to 12 universal analog inputs (compatible with U/I/TC/RTD/frequency/pulse) + 6 digital inputs, eliminating the need for multiple dedicated monitoring devices.
- Enhanced Data Security: Multi-tiered data archiving (internal memory + SD card + USB flash drive) ensures process data is redundantly stored and fully recoverable, meeting audit and compliance requirements.
- Flexible Connectivity & Integration: Native Ethernet, USB, and optional RS232/485/Modbus RTU/TCP interfaces enable seamless integration with SCADA, PLC, and plant-wide systems, supporting both local and remote monitoring via web server.
- Clear Visualization & Alerts: 5.7" TFT color display with multi-format data presentation (digital, bar graph, curve) + configurable email notifications for alarms/limit violations, reducing response time to process anomalies.
- Space-Saving, Multi-Mount Design: Compact low-installation-depth housing supports panel, desktop, or field mounting, with UL recognition and a built-in mathematics package for on-site process value calculations.
