Introduction

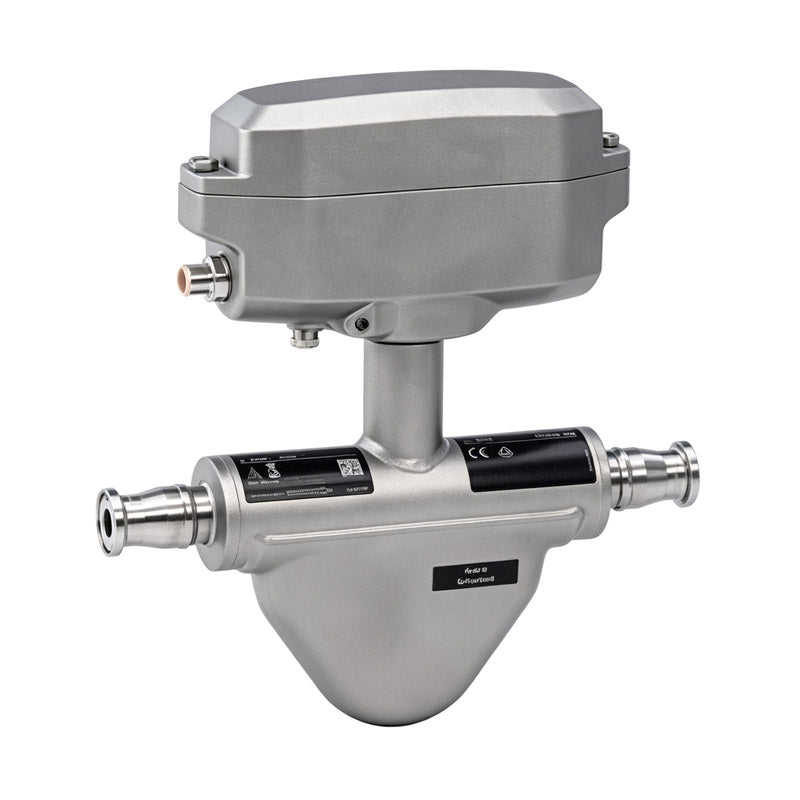

The Dosimass Coriolis Flowmeter is a compact, hygienic mass flowmeter purpose-built for filling, bottling, and batching applications in the food & beverage and life sciences industries. Designed for space-constrained environments, it delivers direct, repeatable measurement of mass flow, density, and temperature, independent of fluid properties like viscosity. With its ultra-compact transmitter and multiple electronics versions (including IO-Link and integrated batching control), it ensures stable filling performance even in the shortest cycle times, while supporting easy commissioning, predictive maintenance, and compliance with global hygienic standards.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Coriolis |
| Mass Flow Measurement Error (Liquid) | ±0.15% |
| Density Measurement Error (Liquid) | ±0.0005 g/cm³ |
| Nominal Diameter Range | DN 1 to 40 (1/24" to 1 1/2") |
| Measuring Range | 0 to 45,000 kg/h (0 to 1654 lb/min) |
| Max. Process Pressure | PN 40 |
| Medium Temperature Range | -40 to +130 °C (-40 to +266 °F) (150 °C allowed for 1 hour) |
| Protection Degree | IP67, Type 4X enclosure |
| Digital Communication | Modbus RS485, IO-Link |
| Hygienic Certifications | 3-A, EHEDG, cGMP compliant, SIP/CIP cleanable |
Key Advantages
High Repeatability for Fast Filling Cycles: Achieves precise mass flow measurement with ±0.15% error, ensuring consistent performance even in the shortest filling times for bottling and dosing applications.
Hygienic & Sanitary Compliance: Designed for SIP/CIP cleaning and certified to 3-A, EHEDG, and cGMP standards, making it fully compatible with food, beverage, and life science production requirements.
Ultra-Compact & Space-Saving Design: Requires no inlet/outlet straight runs, with a DN 1–40 mm (1/24"–1 1/2") size range, ideal for integration into skids, filling lines, and tight machinery footprints.
Flexible Digital Communication Options: Supports IO-Link, Modbus RS485, and pulse/frequency outputs, enabling real-time process data access, predictive maintenance, and simplified commissioning.
Integrated Batching & Drip Correction: Available with built-in Dynamic Drip Correction for advanced filling control, eliminating the need for additional process control hardware in dosing workflows.
