Description
Introduction

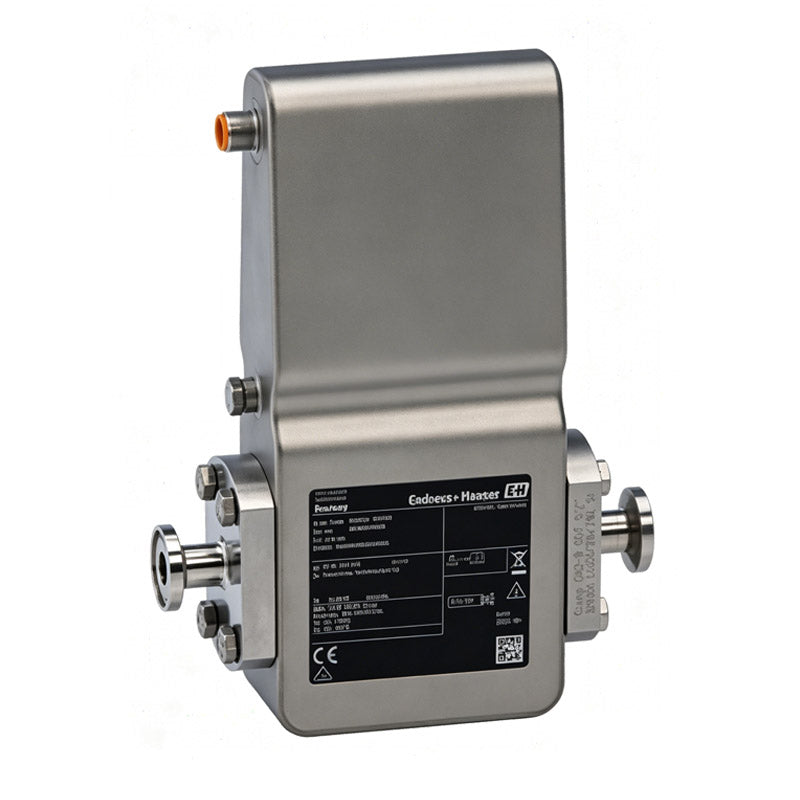

The Endress+Hauser Dosimag is a compact, hygienic electromagnetic flowmeter purpose-built for demanding filling, dosing, and bottling applications in food & beverage and life sciences. Designed for tight spaces, it delivers accurate, repeatable volume flow measurement independent of pressure, density, temperature, or viscosity. Its fully welded, stainless steel housing is SIP/CIP cleanable, supporting seamless integration with Modbus and IO-Link for reliable process control.
Key Advantages
- Ultra-High Repeatability for Filling: Delivers ±0.25% o.r. accuracy with ±1-4 m/s error, ensuring consistent dosing even in shortest filling cycles.
- Space-Saving Compact Hygienic Design: DN 4 to 25 (⅛" to 1") range with fully welded stainless steel housing, optimized for tight skids and filling machines.
- Flexible Digital Communication Options: Supports Modbus RTU and IO-Link, enabling real-time data access, predictive maintenance, and easy commissioning.
- Compliant & Cleanable Construction: SIP/CIP compatible with 3-A, EHEDG, and FDA approvals, meeting strict sanitary standards for food and life sciences.
- Maintenance-Free Operation: No moving parts, obstruction-free design eliminates wear and pressure loss, ensuring long-term reliability.
Specification
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Nominal Diameter Range | DN 4 to 25 (⅛" to 1") |
| Max. Measurement Error | ±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s) |
| Measuring Range | 0.14 to 1.66 l/s (0.035 to 0.44 gal/s) |
| Max. Process Pressure | PN 16 |
| Wetted Materials | Liner: PFA; Electrodes: 1.4435 (316L), Alloy C22, Tantalum, Platinum |
| Digital Communication | Modbus RS485, IO-Link |
| Hygienic Approvals | 3-A, EHEDG, FDA compliant seals, cGMP |
| Process Compatibility | SIP/CIP cleanable |
| Protection Degree | IP66/67, Type 4X enclosure |
