Introduction

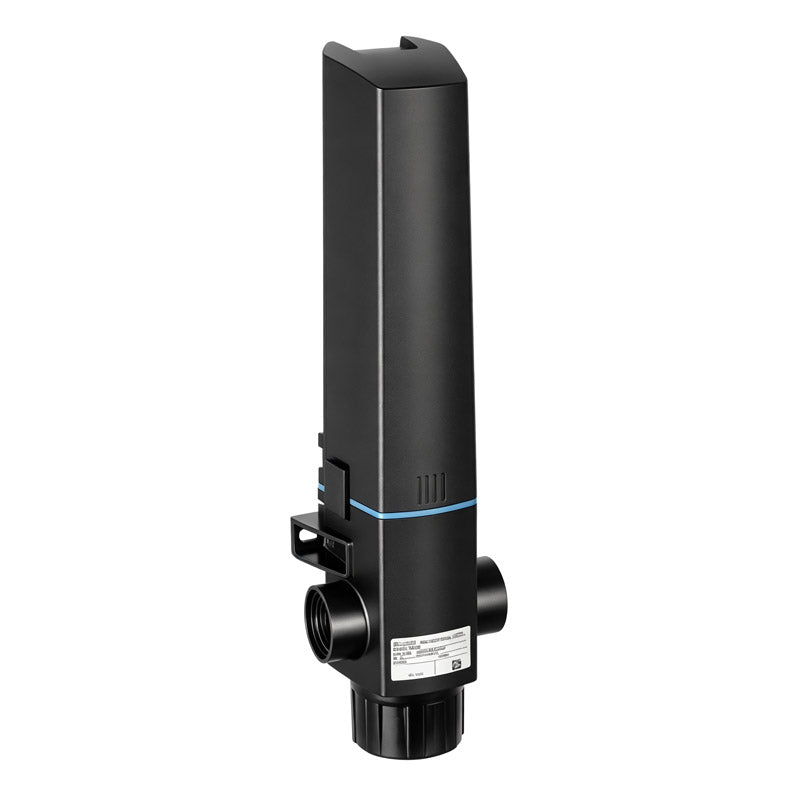

The Endress+Hauser Flowfit CPA25 is a compact, versatile flow assembly purpose-built for pH and ORP sensors. Optimized for water, wastewater, and general industrial auxiliary processes, it provides stable, controlled flow conditions to guarantee accurate and repeatable liquid analysis measurements. Its robust, maintenance-friendly design ensures long-term reliability, even in demanding applications.
Specifications
| Parameter | Specification |
|---|---|
| Measuring Principle | Conductive |
| Primary Application | Water, Wastewater, Utilities |
| Installation Type | Flow assembly |
| Installation Options | Piping, bypass, branch line |
| Sensor Ports | 3 × PG13.5 ports (for 120 mm shaft length sensors) |
| Calibration Feature | Direct calibration in holder (via removable calibration cap) |
| Housing Material | Polypropylene (PP) |
| Seal Material | EPDM or FKM (available) |
| Process Temperature Range | 0 to 80 °C (32 to 176 °F) |
| Max. Process Pressure | 6 bar at 20 °C (87 psi at 68 °F) |
Key Advantages
Triple Sensor Compatibility
Compact design with three PG13.5 sensor ports, enabling multi-parameter liquid analysis from a single assembly for water and wastewater applications.
Stable, Reliable Measurement Geometry
Optimized flow path design ensures consistent, repeatable sensor readings, eliminating measurement fluctuations in varying process conditions.
Built-in Sensor Protection
Siphon-style profile keeps sensors continuously wetted during flow interruptions or plant shutdowns, extending electrode service life.
Simplified Maintenance & Cleaning
Service-friendly removable cover allows quick sensor cleaning and inspection without full disassembly, reducing downtime.
In-Situ Calibration Capability
Calibrate sensors directly while installed in the assembly via the dedicated calibration cap, eliminating the need for removal and re-installation.
