Description
Introduction

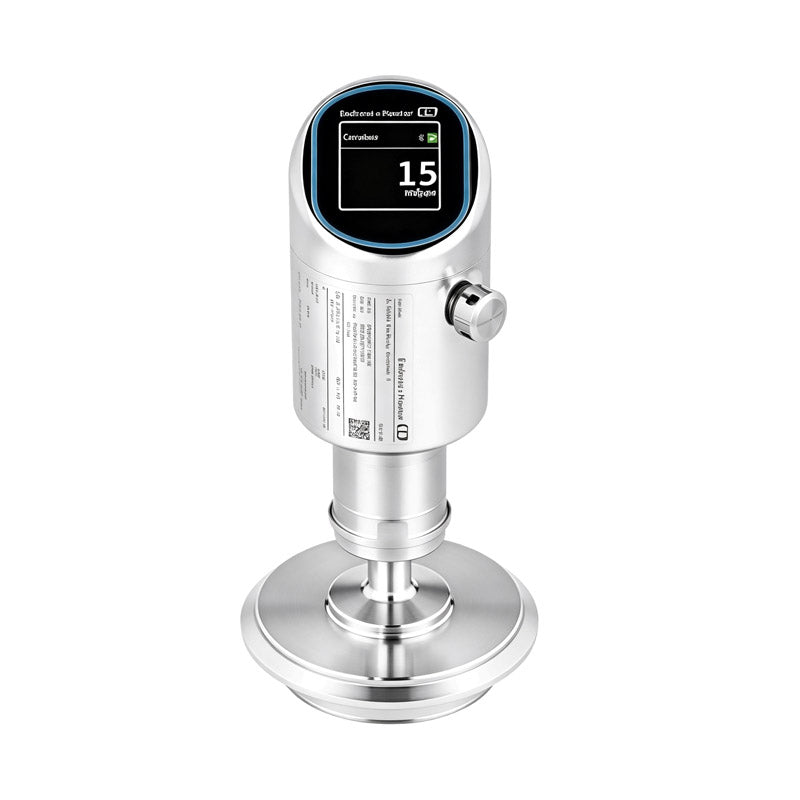

The Endress+Hauser Cerabar PMP43 is a compact, hygienic pressure transmitter designed for demanding food, beverage, and life sciences applications. Built for absolute and gauge pressure measurement in liquids and gases, it combines a space-saving design with high accuracy and reliability.
Specification
| Specification | Details |
|---|---|
| Measuring Principle | Metal diaphragm pressure transmitter (absolute/gauge) |
| Measuring Range | 400 mbar ... 100 bar (6 psi ... 1450 psi) |
| Reference Accuracy | Standard: 0.1%; Platinum: 0.075% |
| Long-Term Stability | 0.1% of URL/year; 0.2% URL/5 years; 0.25% URL/10 years |
| Process Temperature | -40 °C ... +130 °C (-40 °F ... +266 °F); extended: -20 °C ... +200 °C (-4 °F ... +392 °F) |
| Communication | 4-20 mA, 4-20 mA HART, 4-20 mA IO-Link |
| Process Connections | Tri-Clamp, DIN 11851, DIN 11864-1, NEUMO, Varivent, SMS, DRD, universal adapter |
| Materials | Process membrane: 316L; Housing: 316L hygiene; Diaphragm welded (no gasket) |
| Protection Class | IP69K |
| Certifications | ATEX, FM, CSA/US, IECEx, INMETRO, NEPSI, UK Ex |
Key Advantages
- Compact Hygienic Design: Space-saving form factor with welded 316L diaphragm, ideal for tight installations in food/beverage and life sciences processes.
- Multi-Protocol Smart Connectivity: Supports 4-20mA, HART, and IO-Link for seamless integration, with guided touchscreen setup for quick configuration.
- Continuous Process Safety & Diagnostics: CRC configuration integrity and Heartbeat Technology monitor anomalies without process interruption.
- High Accuracy & Stability: 0.1% standard accuracy (0.075% Platinum grade) with long-term stability of 0.1% URL/year for reliable measurements.
- Hygienic & Contamination-Free Operation: IP69K-rated 360° design supports efficient cleaning, with certified hygienic compliance for regulated industries.
