Introduction

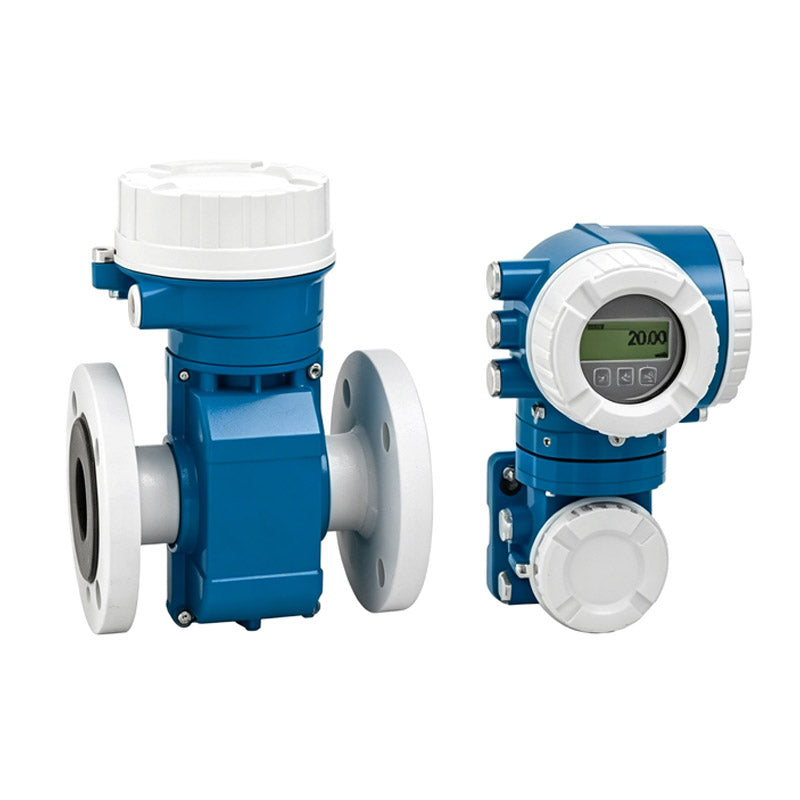

The Endress+Hauser Proline Promag W 500 is a premium electromagnetic flowmeter designed specifically for demanding water and wastewater applications. It offers reliable, pressure-loss-free measurement with IP68 protection, remote configuration, and Heartbeat Technology, making it ideal for municipal, industrial, and custody transfer projects.
Key advantages
1. Unmatched range for water applications: Covers DN 25 to 3000 (1" to 120") with a measuring range up to 263,000 m³/h, suitable for large-scale water and wastewater systems.
2. IP68 protection for harsh environments: Rated IP68 (Type 6P) with EN ISO 12944 corrosion protection, approved for underground or underwater installations.
3. Custody transfer accuracy: Meets MI-001/OIML R49 standards with ±0.2% optional accuracy, ideal for billing and custody transfer applications.
4. Flexible remote configuration: Supports up to 4 I/Os with freely combinable fieldbuses and WLAN access, enabling easy integration and remote monitoring.
5. Drinking water compliant: Features international drinking water approvals (ACS, NSF 61, WRAS), safe for use in potable water distribution networks.
| Parameter | Specification |
|---|---|
| Measuring principle | Electromagnetic |
| Nominal diameter range | DN 25 to 3000 (1" to 120") |
| Max. process pressure | PN 40, Class 300, 20K |
| Max. medium temperature (hard rubber liner) | +80 °C (+176 °F) |
| Max. medium temperature (polyurethane liner) | +50 °C (+122 °F) |
| Max. medium temperature (PTFE liner) | +90 °C (+194 °F) |
| Max. measurement error (standard) | ±0.5% o.r. ± 1 mm/s |
| Max. measurement error (option) | ±0.2% o.r. ± 2 mm/s (Flat Spec) |
| Measuring range | 0.5 m³/h to 263000 m³/h (2.5 gal/min to 1665 Mgal/d) |
| Wetted liner materials | Hard rubber, polyurethane, PTFE |
| Wetted electrode materials | 1.4435 (316L), Alloy C22, Tantalum |
| Measured variables | Volume flow, conductivity, mass flow |
| Digital communication | HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, PROFINET, Ethernet/IP, OPC-UA |
| Degree of protection | IP66/67 (Type 4X), IP68 (Type 6P) |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC, JPN, UK Ex, KC |
